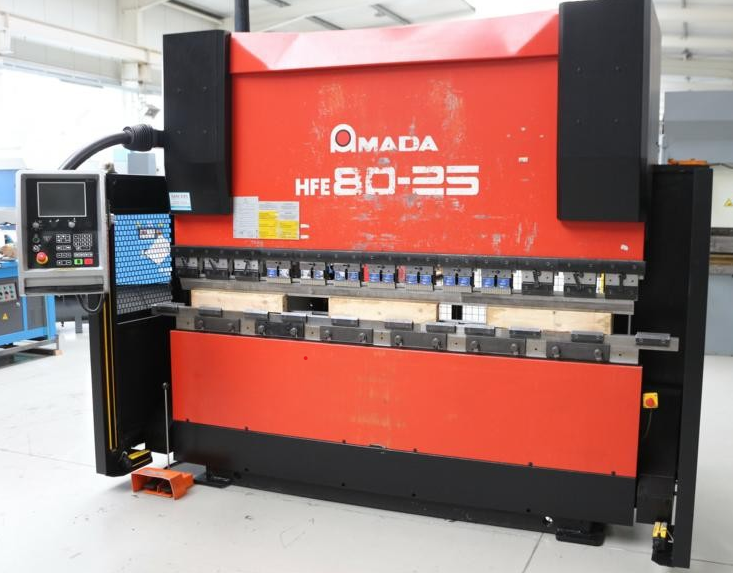

Amada HFE 80-25 80 t

Tonnage: 80 t
Bending Length: 2570 mm
Distance Between Columns: 2125 mm
Column Arm: 420 mm
Stroke: 200 mm
Daylight Opening: 470 mm
Table Height: 960 mm
Adjustment Speed: 100 mm/sec
Working Speed: 10.0 mm/sec
Return Speed: 100 mm/sec
Oil Volume: 90 l
Total Power Requirement: 9.0 kW
Machine Weight: 5,750 kg
Machine Dimensions: 3630 x 2450 x 2550 mm
Operating Hours: ~33,100 h
Backgauge Adjustment Range: 700 mm
Backgauge Range with Workpiece: 1020 mm

Control: AMADA OPERATEUR II CNC
CNC Axes: X1, X2, Y1, Y2, R1, R2, Z1, Z2
Backgauge X Axis Control: CNC
Vertical Finger Adjustment (R Axis): CNC
Stop Finger Left/Right (Z1/Z2): CNC
Manual Fine Adjustment: Yes
Tool Holder System: AMADA upper wedge crowning system
Foot Switch: Free-moving
Control Panel: Swivel type, front left
Safety Guarding: Rear safety grid
Safety Guarding: Side safety doors
CE Marking: Included
Operating Instructions: Included
Positioning Accuracy (X Axis): ±0.1 mm
Positioning Accuracy (R Axis): ±0.1 mm
Positioning Accuracy (Z Axis): ±1.0 mm
