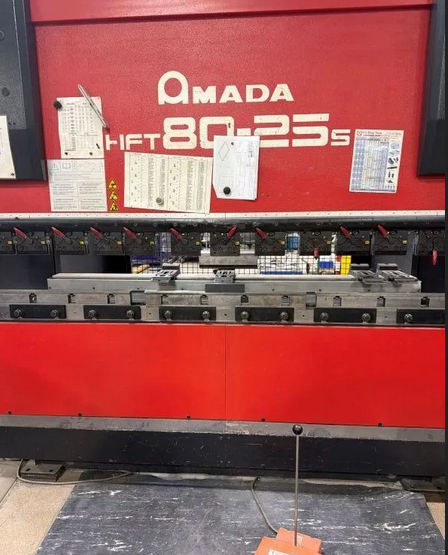

Amada HFT 80-25S 88 ton
Ref :
2801034-3-AW
Condition :
Used
Manufacturer :
Amada
Model :
HFT 80-25S
Pressure :
88 ton
Year(s) :
2006
Quantity :
1
Location :
Seller or machines location:
AMERICA North (USA-Canada-Mexico)
AMERICA North (USA-Canada-Mexico)
Press force: 88 ton
Overall bending length: 100"
Distance between housings: 83"
Stroke: 7.87"
Approach speed: 240 IPM
Forming speed: 233 IPM
Return speed: 188 IPM
Open height: 18.5"
Throat depth: 16.5"
Control: Amada Operator II V6-02A
Y1 axis CNC controlled
Y2 axis CNC controlled
X axis CNC controlled
R axis CNC controlled
2 sets of back gauge fingers
Remote foot pedal
Ram clamps
Lower die holder
Manuals included
Main motor: 20 HP
440V / 3Ph / 60Hz
Machine dimensions: 120" x 60" x 96" H
Machine weight: 12,680 lbs
