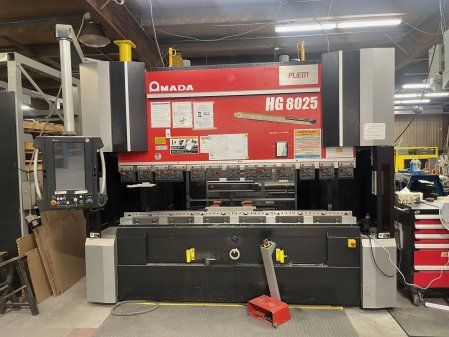

Amada HG-8025-15 89 tons press force

Maximum bend length: 102.4 in
Distance between frames: 87 in
Stroke length: 9.8 in
Open height (no holders): 20.5 in
Throat depth: 17.7 in
Table height: 37.4 in
Approach speed: 8.7 in/sec
Bending speed: 0.79 in/sec
Return speed: 9.8 in/sec
Number of cylinders: 2
Hydraulic fluid capacity: 11 gal
Backgauge range: 27.5 in
Ram repeatability: ±0.00004 in
Backgauge speed L-axis: 1.181 in/min
Backgauge speed Y-axis: 3.543 in/min
Backgauge speed Z-axis: 787 in/min
Control type: AMNC 3i
Program capacity: Unlimited via network
Possible CNC axes: 11
Ram axes: D1, D2
Backgauge axes: L1, L2
Backgauge horizontal axes: Y1, Y2
Backgauge vertical axes: Z1, Z2
Nominal supply current: 44 A
Provided power: 16 kVA
Machine length: 139 in
Machine width: 95 in
Machine height: 112 in
Machine weight: 15,875 lb
