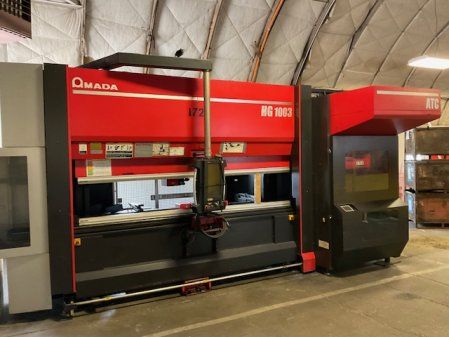

Amada HG1003ATC 110 US Tons Tonnage

AMADA HG1003ATC
2015

110 US Tons Tonnage
AMNC 3i CNC Control
118.1" Maximum Bend Length
9.8" Maximum Stroke Length
23.4" Open Height
106.3" Distance Between Housings
2 Hydraulic Crowning Cylinders
0.00004" Ram Repeatability
8.7 in/sec Approach Speed
0.78 in/sec Maximum Bending Speed (Programmable)
9.8 in/sec Return Speed
8-Axis Backgauge Including L-Shift
238.1" Length Overall Machine Dimension
126.6" Width Overall Machine Dimension
12.7 Gallons Hydraulic Oil Capacity
26,840 lbs Total Weight
200V, 22kVA and 41kVA Supply Power
2 Foot Pedals (Auto Slide and Remote)
Auto Bi-S (Single) Bend Angle Control
Safety Gate for Tool Change
Light Guard for Slide Pedal
PILZ PSENvip P Safety Device
AMTS ATC Tool Style
15 Punch Stockers
18 Die Stockers
Right Hand ATC Location
120.47" Maximum Tool Layout Length
157.5" Maximum Tool Layout Length
0.196" Minimum Tool Pitch
0.157" to 1.57" V Range
Punch Reversal Unit
6.7" Standard Punch Height
