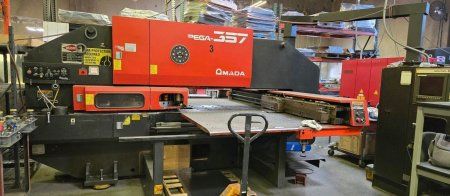

Amada PEGA 357 TURRET PUNCH W/ FANUC 04PC,58 STATION, 2 A/I 33 TON

Frame Design: Bridge
Press Capacity: 33 Ton
Type of Punching Force: Mechanical
Type of Clutch and Brake: Hydraulic
X axis Travel (Inches): 72"
Y axis Travel (Inches): 50"
Throat Depth (Inches): 50"
Maximum Sheet Size with One Auto-Reposition: 50" x 144"
Control: Fanuc 04PC
Tape Format: E.I.A. or A.S.C.I.I.
Programming Mode: Absolute/Incremental
Smallest Programmable Increment: .001"
Axis & Turret Drive: AC motors brushless/servo
Strokes per Minute: 350
Axis Speed: 2,000 IPM
Hits per Minute 1" moves: 200
Nibbling Hits Per: 350 IPM
Main Motor: 5 HP 3/60 Volts
Machine Weight: 11.6 Tons
Approximate Dimensions: 181" L x 148" W X 88" H

Turret Specifications
Number of Turret Stations: 58 Stations with 2 Auto-index
Turret Rotation: 30 RPM
Maximum Hole Diameter: 4 1/2"
Maximum Material Thickness (Gauge):.1/4" Mild Steel
Tool Type: Thick
