Amada PULSAR 1212NT AMNC-F

AMADA PULSAR 1212NT
2012

Laser power: 4000 watts
Approximate hours: 18,700
Travel method: X axis for workpiece movement, Y axis for cutting head movement
Control method: X, Y & Z simultaneous 3-axis control and B axis
Drive motors: FANUC AC Servo (X, Y, Z, and B)
Maximum sheet size: 50" (Y) x 100" (X) with one repositioning cycle
Maximum axis travel: 50" (Y) x 50" (X) x 11.8" (Z) x 0.78" (B)
Maximum cutting speed: 787 IPM
Maximum table speed: 3,149 IPM per axis (4,454 IPM 45 vector)
Maximum speed Z-axis: 2,362 IPM
Positioning accuracy: 0.0004"/20"
Repeatability: 0.0004"
Maximum material weight: 484 lbs. (4' x 8' x 3/8" or 4' x 6' x 1/2")
Number of clamps: 2
Work chute: 58" (Y) x 21" (X)
Assist gas: Automatic 4 ports with NC pressure control
Machine size: 123" x 100" x 86.5"
Machine weight: 12,232 lbs including laser resonator
Electrical requirements: 208 VAC, 3 phase, 60 Hz
CNC controller model: AMNC-F

Synchronized stainless steel rollers
High speed capacitive head for scratch-free stainless and aluminum parts
Stealth clamps reduce dead zones and maximize material use
Full machine width work chute automatically unloads large parts
Multiple parts unload simultaneously for increased throughput
Advanced turbine driven RF excited fast axial flow CO2 laser
Automatic power-up calibration for repeatability
Compact footprint with material movement in one direction
Laser mounted on frame

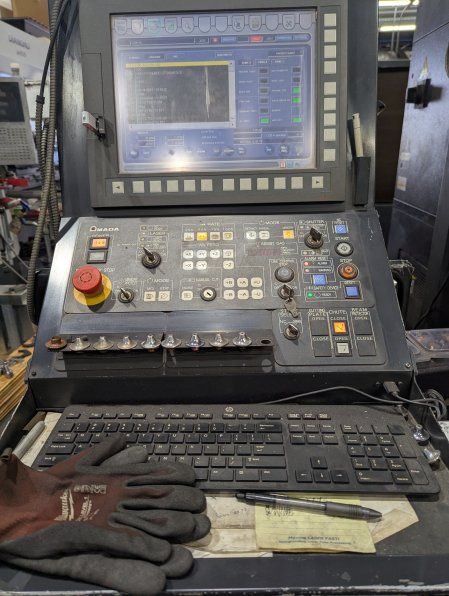

Pendant mount control system
