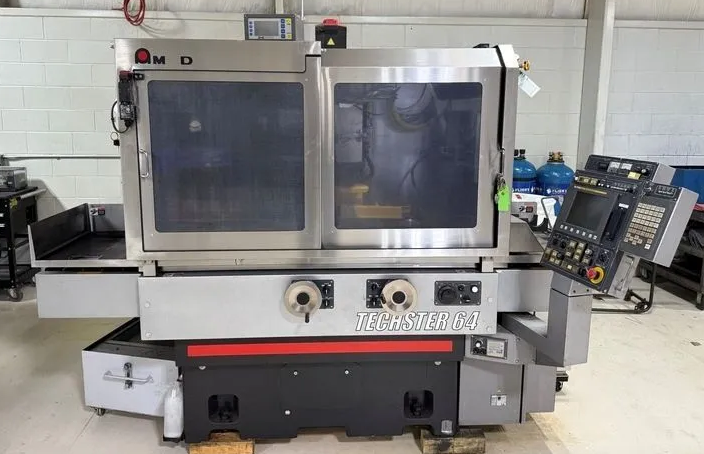

Amada Techster 64

Table working surface: 26.5″L x 15.7″W
Longitudinal travel maximum: 30.7″
Cross travel maximum: 17.7″
Distance from table top to wheel center: 19.68″
Working surface height from floor: 35.4″
Standard chuck size: 23.6″ L x 15.7″ W x 3.9″ H
Allowable work weight (chuck included): 771.6 Lbs.
Left/right manual handle feed (normal): 3.9″ per revolution (0.04″ per graduation)
Left/right manual handle feed (inching): 0.197″ per revolution (0.00197″ per graduation)
Left/right manual jog feed speed: 32.8 fpm (3.28 fpm for inching)
Left/right manual drive system: Ball screw, jog lever, manual pulse handle
Left/right auto feed speed (normal): 3.28 – 98.4 fpm
Left/right auto feed speed (creep): 0.4 – 7.87 ipm
Left/right setting increment minimum: 0.000004″
Left/right guide surface: VV Turcite
Forward/backward manual handle feed: 0.0004″, 0.004″, 0.04″, 0.15″ per revolution
Forward/backward manual jog feed speed: 0-15.7, 19.6, 39.3, 78.7, 118.1 ipm
Forward/backward manual drive system: Ball screw, manual pulse handle
Forward/backward auto feed speed (fast): 196.8 ipm
Forward/backward auto feed speed (grinding): 0.004″ – 196.8 ipm
Forward/backward setting increment minimum: 0.000004″
Forward/backward guide surface: Linear ball guide
Upward/downward manual handle feed: 0.0004″, 0.004″, 0.04″, 0.15″ per revolution
Upward/downward manual jog feed speed: 3.93, 7.87 ipm
Upward/downward manual drive system: Ball screw, jog lever, manual pulse handle
Upward/downward auto feed speed (fast): 78.7 ipm
Upward/downward auto feed speed (grinding): 0.004″ – 19.6 ipm
Upward/downward setting increment minimum: 0.000004″
Upward/downward guide surface: Linear ball guide
Wheel size (OD x Width x ID): Ø13.97″ x 1.49-1.96″ x Ø5″
Wheel spindle speed: 1500/1800 RPM
Wheel speed maximum: 9800 fpm
Wheel spindle motor: 5 HP
Forward/backward motor: 1.6 HP
Upward/downward motor: 2.4 HP
Left/right motor: 2.4 HP
Lubrication oil capacity: 3.9 gal.
Electrics: 200-220V/3Ph
Machine dimensions: 114″ L x 92″ W x 85″ H
Chiller dimensions: 24″ L x 17″ W x 32″ H
Coolant system/misc. skidded dimensions: 45″ L x 50″ W x 38″ H
Total weight: 8,800 Lbs.
Control: Fanuc Series 32i-Model B CNC Controller (with Teaching Cycle)
Chuck: 23.6″ x 15.7″ Electromagnetic Chuck w/Neutrifier
Rotary wheel dresser: DTS 1300 G2
Touch setter: Optional
Absolute linear scale: AT500 Optional
Variable speed drive for spindle: Schneider Optional
Coolant system: Prab w/Paper Media Filtration
Chiller: Daikin Inverter Unit
Pneumatic clamping fixtures: 2
Dual hand activation for fixture & door: Banner
