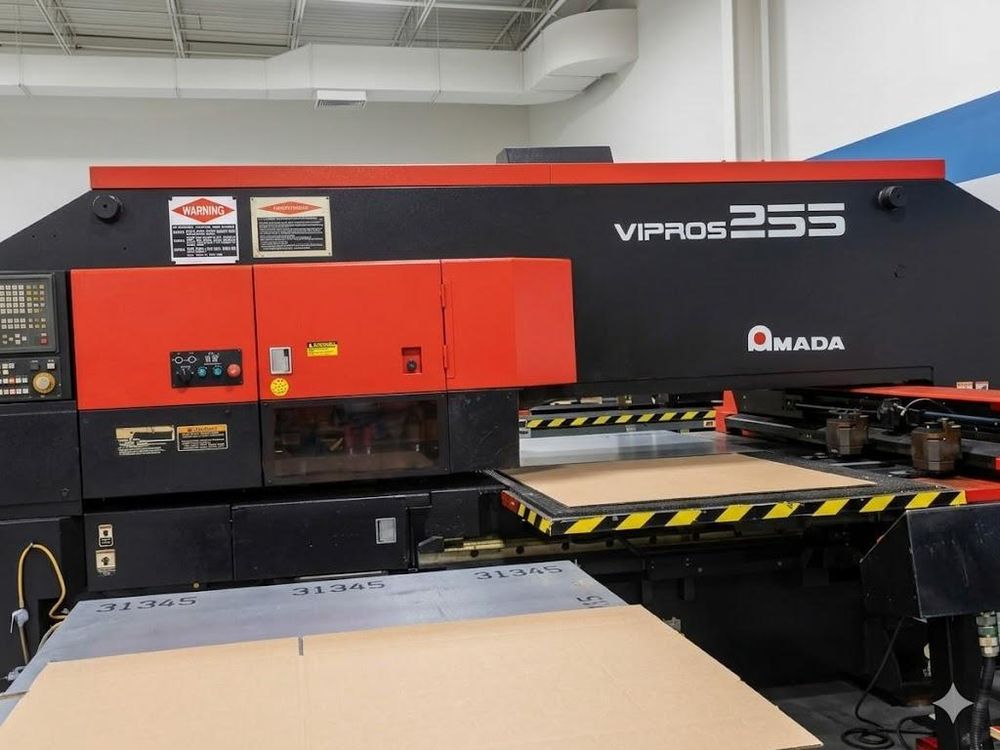

Amada VIPROS 255 22 tonnes

Press capacity: 20 - 22 tonnes
Axis traverse distance: 1270 x 1270 mm (50" x 50")
Max material thickness: 6.35 mm (1/4")
Maximum sheet size with repositioning: 1270 x 2540 mm (50" x 100")
Turret stations: 31 total
3 auto-index stations
Max hole diameter: 88.9 mm (3.5")
Hits per minute: 1000 HPM
Axis speed: approx. 82-85 m/min (2559 IPM)
Control type: Fanuc 18P
Approx. weight: 21,500 lbs (9,750 kg)

Servo-controlled hydraulic ram
Brush table
Positioning accuracy: ±0.007"
Advanced forming
Tapping
Nibbling
