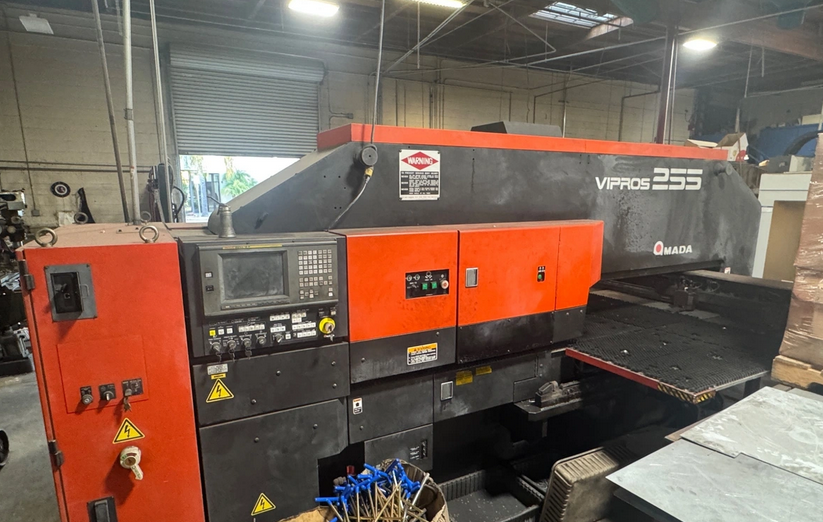

Amada VIPROS 255 22 tons

Capacity: 22 tons
Sheet size: 50" x 50"
Max hole diameter: 305"
Number of turret stations: 31 with 2 auto-index stations
X/Y hit rate (0.079" pitch, 0.118" stroke): 720/510 HPM
X/Y hits per minute (1" centers, 0.315" stroke): 340/280 HPM
Linear positioning speed: 3229 IPM
Smallest programmable increment: 0.001"
Turret stations: 31
Control system: Fanuc 18P
Drive motors: AC servo
Hydraulic drive system with adjustable stroke
Precision ground recirculating ball lead screws (X and Y axis)
Crash-proof clamp sensors
Safety interlocks and overrun protection system
Air blow and oil mist system for tooling
Brush table
Built-in microprocessor control system
Diagnostic system for error detection and machine monitoring
Automatic repositioning work holders
Forming capabilities: beading, embossing, extrusion, pattern forming
Programmable dwell cycle at bottom of stroke
Metric and inch programming capability
