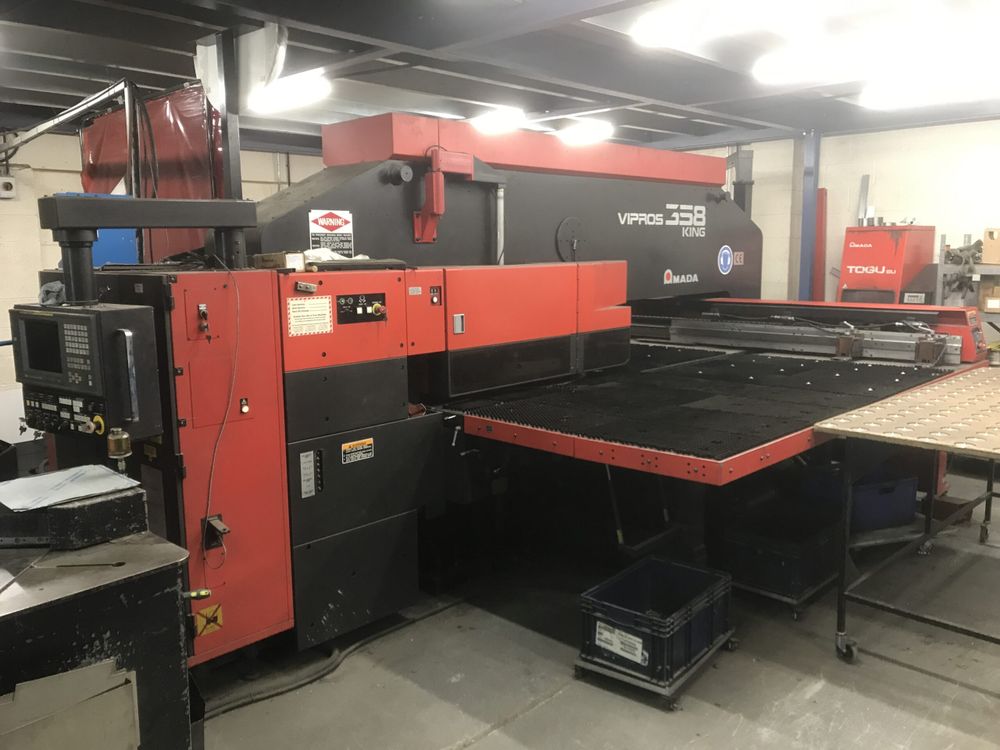

Amada VIPROS 358 KING 30 tonnes

Press Capacity: 30 tonnes
Axis Traverse Distance X/Y: 1270 mm x 2000 mm
Workable Maximum Sheet Size: 1270 x 4000 mm
Max Material Thickness: 3.2 mm
Max Material Weight: 50 kg
Max Hole Diameter: 114.3 mm
Number of Stations: 58
Station A Max Diameter: 12.7 mm
Station B Max Diameter: 31.7 mm
Station C Max Diameter: 50.8 mm
Station D Max Diameter: 88.9 mm
Auto Indexing Station B Max Diameter: 31.7 mm
Auto Indexing Station E Max Diameter: 50.8 mm
Axis Speed X/Y: 113 m/min
Strokes per Minute: 350 S.P.M.
Hits per Minute 2mm Pitch/3mm Stroke: 860 H.P.M.
Hits per Minute 8mm Pitch/8mm Stroke: 560 H.P.M.
Hits per Minute 25mm Pitch/3mm Stroke: 460 H.P.M.
Turret Bi-Directional Speed: 30 RPM
Punching Accuracy: ±0.1 mm
Ram Stroke Length: 40 mm
Axis Drives: AC Servo Motor
Press Motor: 5.5 kW
Electric Power Required: 28 KVA 400V ±10% 50Hz
Air Pressure Required: 5.0 Kgf/cm²
Air Flow: 250 L/min
Machine Length: 4580 mm
Machine Width: 4120 mm
Machine Height: 2450 mm (3050 mm to mirror)
Machine Weight: 16,000 kg
Standard Equipment: Safety Light Guards
NC Model: Amadan 04P-C PHNC
Display: 14″ Colour Monitor
Data Interface: RS232C
