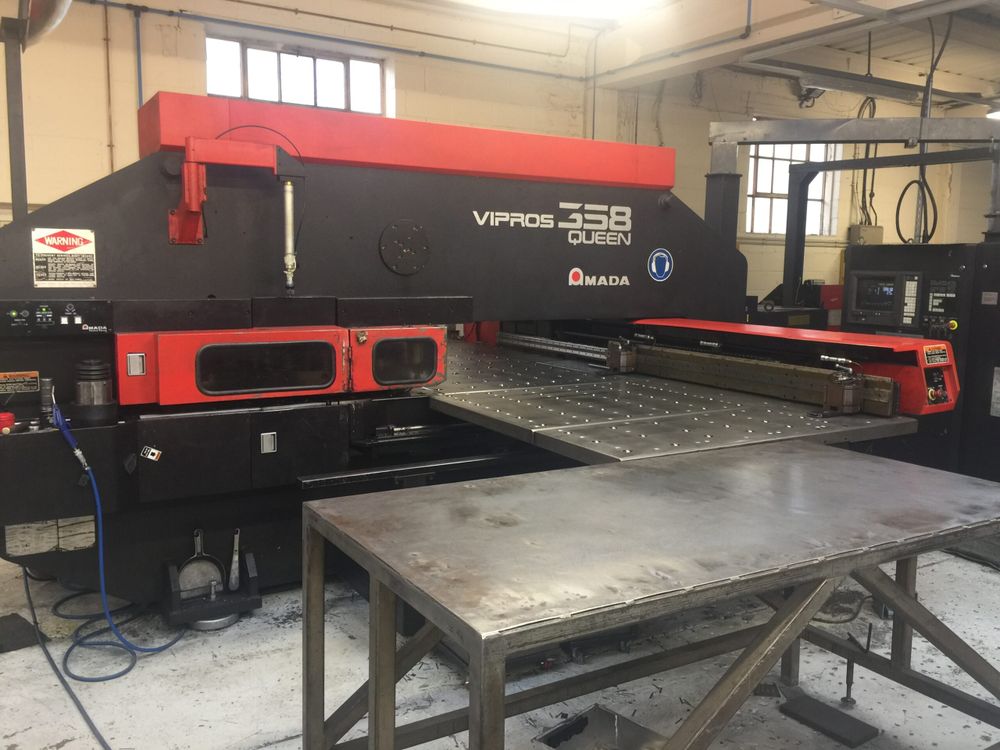

Amada Vipros 358 Queen 30 tonnes

Press Capacity: 30 tonnes
Axis Traverse Distance X/Y: 1270 mm x 2000 mm
Workable Maximum Sheet Size: 1270 x 4000 mm
Max Material Thickness: 6.35 mm
Max Material Weight: 150 kg
Max Hole Diameter: 114.3 mm
Number of Stations: 45
Station A Max Diameter: 12.7 mm
Station B Max Diameter: 31.7 mm
Station C Max Diameter: 50.8 mm
Station D Max Diameter: 88.9 mm
Station E Max Diameter: 114.3 mm
Auto Indexing Station B Max Diameter: 31.7 mm
Auto Indexing Station E Max Diameter: 50.8 mm
Axis Speed X/Y: 82 m/min
Hits per Minute 2mm Pitch/3mm Stroke: 520 H.P.M.
Hits per Minute 25mm Pitch/8mm Stroke: 275 H.P.M.
Turret Bi-Directional Speed: 30 RPM
Punching Accuracy: ±0.1 mm
Ram Stroke Length: 40 mm
Axis Drives: AC Servo Motor
Electric Power Required: 30 KVA 400V ±10% 50Hz
Air Pressure Required: 5.0 Kgf/cm²
Air Flow: 250 L/min
Machine Length: 4680 mm
Machine Width: 4060 mm
Machine Height: 2310 mm (2890 mm to mirror)
Machine Weight: 13,500 kg
Standard Equipment: Safety Light Guards
NC Model: Amadan 04P-C PHNC
Display: 14″ Colour Monitor
Data Interface: RS232C
