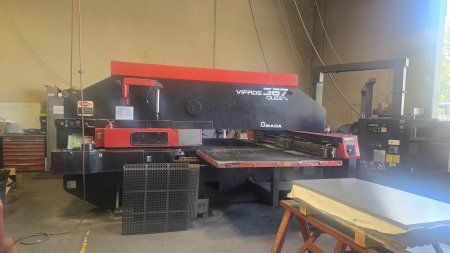

Amada VIPROS 367 QUEEN 33 tons

Press Capacity: 33 tons
Table Size: 60" x 72"
Max Sheet Size: 60" x 144"
Max Material Thickness: 25"
Max Sheet Weight: 265 lbs
X-Y Feed Speed: 2560 / 1968
Diagonal Table Speed: 3229 ipm
Positioning Speed: 2783 ipm
High-Speed Positioning: 4229 ipm
Ram Stroke: 1.25"
Hit Rate (2 mm pitch): 520 hits
Hit Rate (25 mm pitch): 275 hits
Punching Accuracy: ±0.004"
Repeatability: ±0.001"
Turret Stations: 58
Auto Index Units: 2
Turret Rotation Speed: 30 max
Fanuc 18P Control
