Amada VM-3800 VERTICAL BAND BLOCK/PLATE SAW MODEL SemiAutomatic
AMERICA North (USA-Canada-Mexico)

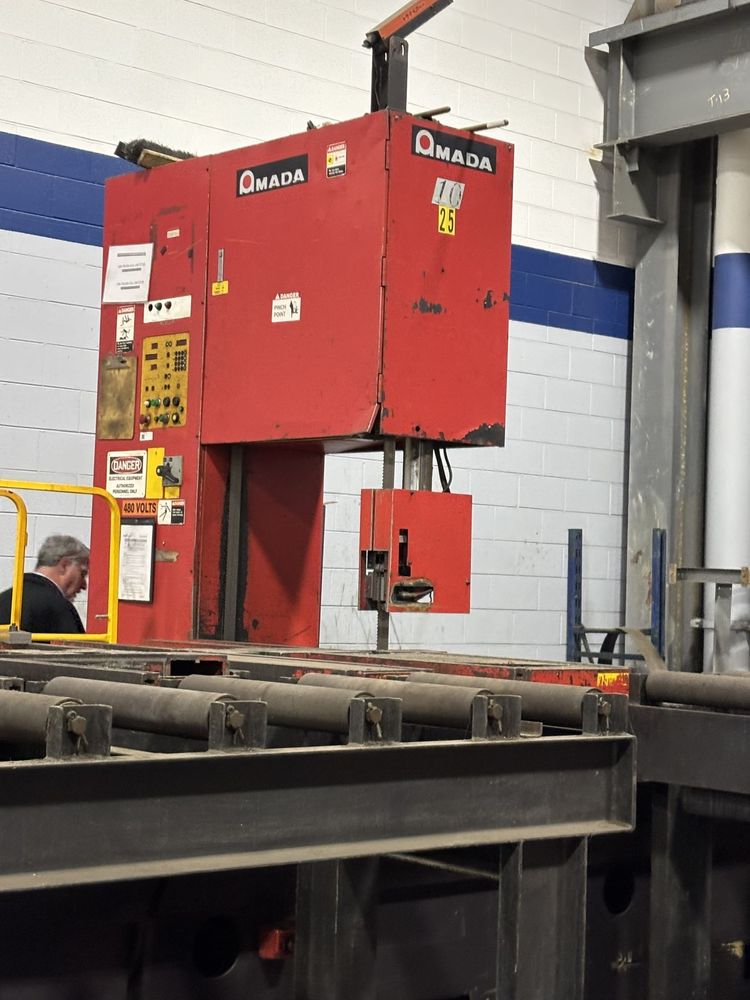

AMADA VM-3800
1990
Working length: 150"
Maximum work height: 24"
Throat depth (blade to column): 31.5"
Table size: 70" x 167"
Maximum table load: 26,460 lbs
Blade size: 253" L x 2" W x 0.063" thick
Blade speed: 39 to 262 FPM
Table height: 55.5"
Main drive motor: 10 HP, 480V, 3-phase, 60 Hz
Hydraulic drive motor: 2 HP AC
Power required: 14 KVA
Optional 3 lifter and pusher units in table (needs adjustment or work)
Lifter and pusher control box
Programmable control
Hydraulic blade tension
Coolant system
Chip auger
Centralized control panel
Can be inspected under power
Machine weight: 22,000 lbs
Machine dimensions: 324" x 109" x 125"
