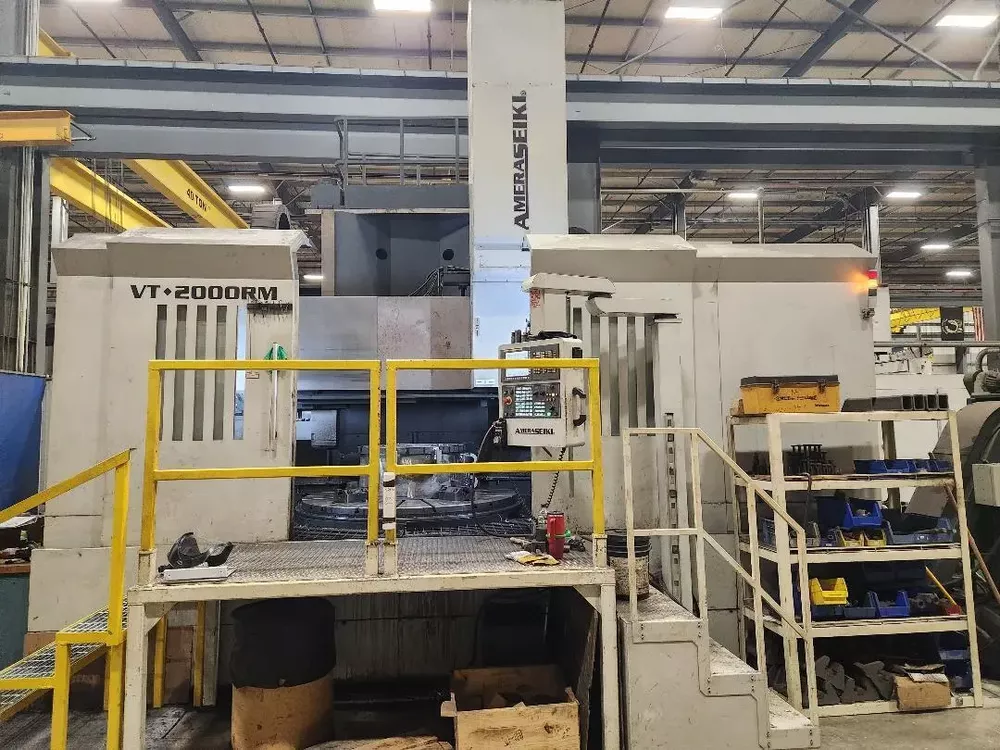

Amera Seiki VT-2000RM Cross rail moving height: 1000 mm (6 step)

Tonnage / Table Max. Load: 44,000 lbs (20,000 kg)
Table diameter 4-jaw chuck: 78.74" (2000 mm)
Maximum swing diameter: 82.7" (2100 mm)
Maximum cutting diameter: 78.7" (2000 mm)
Maximum cutting height: 63" (1600 mm)
Table main motor: 100 Hp / 29,480 ft-lbs torque
Table speed: 10–450 rpm
Gearbox speed stages: 3
Live tool spindle speed / torque: 3,000 rpm / 353 ft-lbs (30 min)
Live spindle power: 40/50 Hp
Ram size: 10" x 10" (254 x 254 mm)
ATC tool number: 12 / 24
Tool specification: Cat 50 / live tooling
Tool holder/shank: 11.8" x 11.8" (300 x 300 mm)
Rapid feed rate X axis: 12 m/min (472.4 in/min)
Rapid feed rate Z axis: 12 m/min (472.4 in/min)
Z axis ram stroke: 49.21" (1250 mm)
X axis horizontal travel: -300 ~ 1700 mm (11.8–66.9")
Z axis vertical travel: 800 mm (31.5")
Cutting feed rate: 0.01–1000 mm/rev (0.0003–39.4 in/rev)
Machine weight: 122,041 lbs
Positioning accuracy: 0.0004"/40"
Repeatability: 0.0002"
CNC control: Fanuc Oi-TF
Upgrade: 100 Hp 3-speed transmission table motor
Ram size: 10" x 10"
Live tooling 40/50 Hp continuous / 30 min
Manual 4-jaw chuck
Three range table gearbox
Semi-hood enclosure
Heat exchanger with air conditioner cabinet
12-drum tool changer
I.D. tool holder ×1, O.D. tool holder ×1
Level screws and level shoes
Chip conveyor with cart
Automatic lubrication system
Work lamps ×2
Operation & maintenance manual
Electrical circuit diagram
Fanuc CNC control manual
Machine upgrades included:
12-station automatic tool changer
X/Z axis HDH optical scale
Renishaw part probe RMP60
Renishaw tool probe TS20
CTS @ 1,000 psi with filtration unit
Extended column Z axis traverse 63" (1600 mm)
Additional O.D. toolholder
