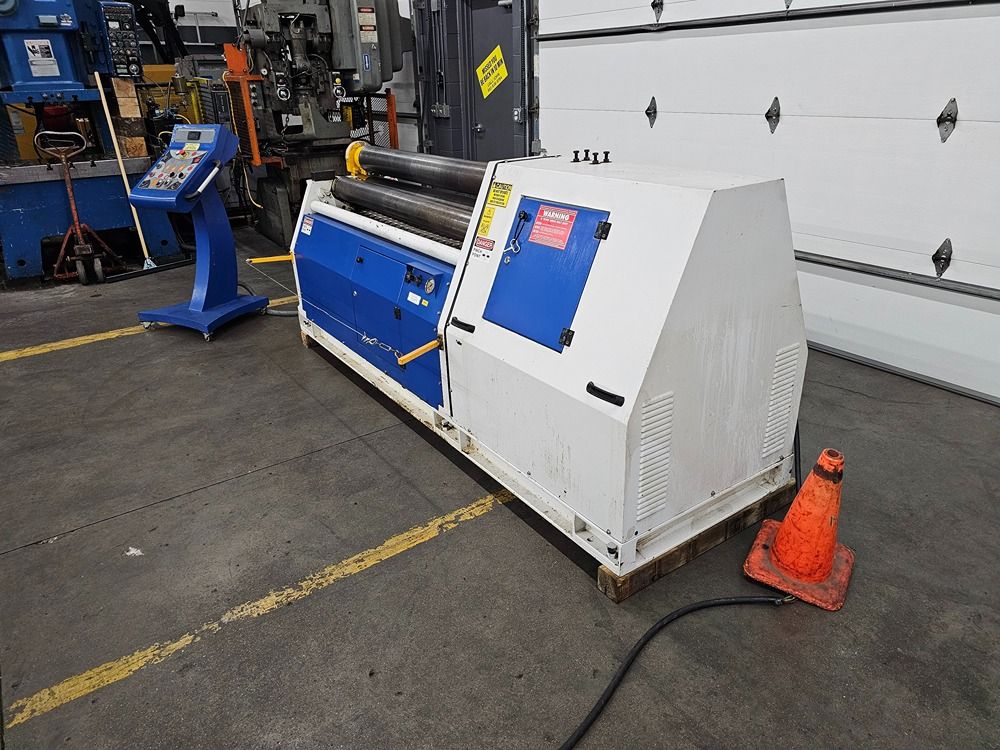

Americor LH150/5

Capacity 5′ x 1/4″
Drive/Hyd. Motor 5 HP
Pre-bending capacity .177″
Bending capacity .256″
Forming width 60″
Working speed 19.7 ft/min
Top roll diameter 5.91″
Bottom roll diameter 5.91″
Lateral roll diameter 5.12″
Weight 5,250 lbs
Power supply 220V 3 Phase
Dimensions 130″ x 46″ x 44″
Hydraulic roll adjustment for bending and prebending
Hydraulic pinch/clamping roll
Hydraulic drop-end
Digital readout for bending roll positions
Cone bending attachment
Induction-hardened rolls
Roller bearings on all roll shafts
Emergency stop cable at front and rear
Easy tilt of bending rolls for cone bending
Extra-large openings between top and bottom rolls
Rolling control console
Hardened gears
Lineal-guided roll adjustment for bending rolls
Enhanced drive system without belts, chains, or extra gear-driving systems
Rolls SAE 1050 high strength steel, heat treated and induction hardened to 56-60 RC
High quality electric and hydraulic components
Rigid frame and drop-end arrangement
Enhanced cone bending device
Corrosion and abrasive resistant paint finish
CE certified
