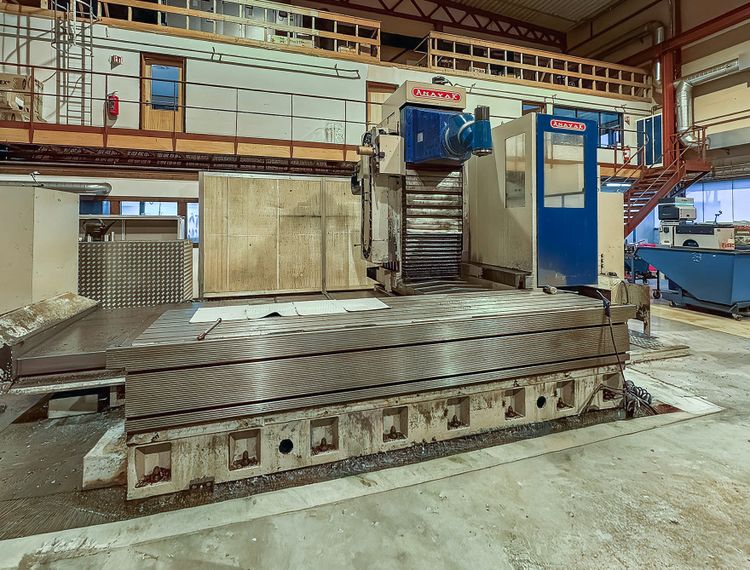

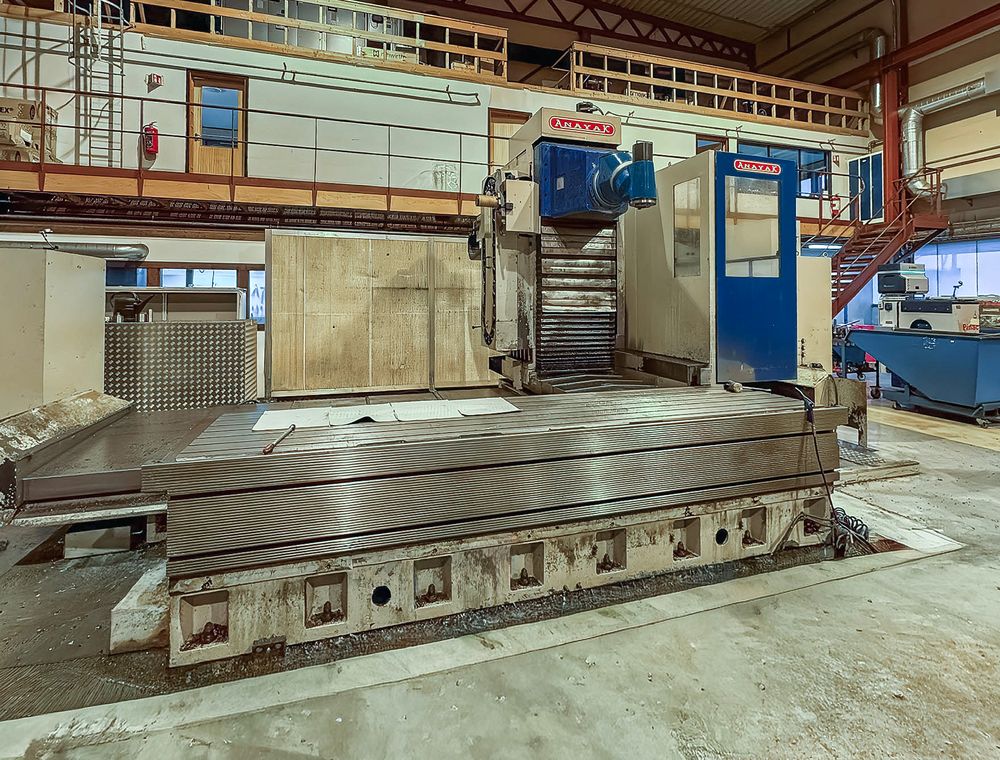

Anayak HVM 3800 3000 rpm (2-speed gearbox)
Ref :
2806149-3-AW
Condition :
Used
Manufacturer :
Anayak
Model :
HVM 3800
Spindle Speed :
3000 rpm (2-speed gearbox)
Year(s) :
2001
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
X-axis travel: 3200 mm
Y-axis travel: 1460 mm
Z-axis travel: 1200 mm
Control: Heidenhain TNC 415/430 M
Controlled vertical head: 0.001°
Coolant through spindle: 8 bar
Spindle speed: 60–3000 rpm (2-speed gearbox)
Spindle motor power: 30/41 kW
Spindle taper: DIN 69871-B50 ISO
Tool changer: 30 positions
Voltage: 400 V
Power: 50 kVA
Machine weight: 33000 kg
Machine length: 8820 mm
Machine width: 5190 mm
Machine height: 3910 mm
