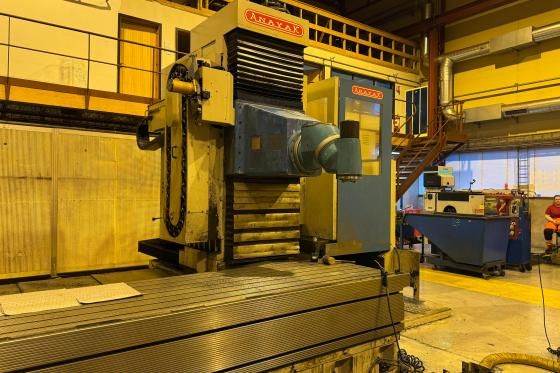

Anayak HVM 3800 3000 rpm
Ref :
2746323-3-GO
Condition :
Used
Manufacturer :
Anayak
Model :
HVM 3800
Spindle Speed :
3000 rpm
Year(s) :
2001
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
X travel: 3200 mm
Y travel: 1200 mm
Z travel: 1460 mm
Milling head auto-index: 2.5 x 2.5°
Control: Heidenhain TNC430
Chip conveyor
Double doors front side
Chain tool changer 30 positions
Central lubrication
IKZ 16 bar and 2.2 kW flow 16 L/min
Tool blocking power: 1968 daN
Full set books and 1st owner machine
Spindle power: 41 kW
Spindle speed: 3000 rpm
Spindle taper: ISO/BT/MK 50
Feed rate X axis: 10000 mm/min
Feed rate Y axis: 10000 mm/min
Feed rate Z axis: 10000 mm/min
Table length: 3800 mm
Table width: 1000 mm
Table load: 30000 kg
Working hours: 10659 h
Machine length: 8820 mm
Machine width: 6250 mm
Machine height: 3910 mm
Machine weight: 33000 kg
