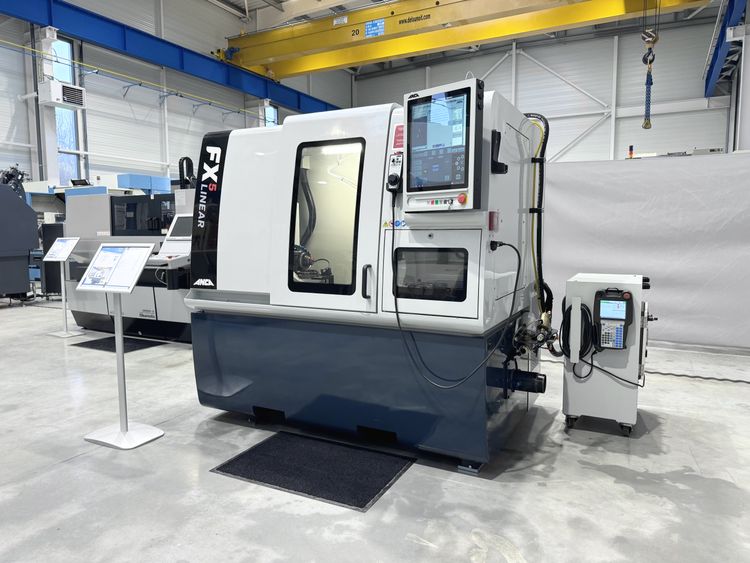

Anca FX5 Linear

CNC Tool grinding machine ANCA FX5 Linear



TECHNICAL CHARACTERISTICS:

Year of manufacturing: 2016
Software installed: RN33.1 Update 29.00

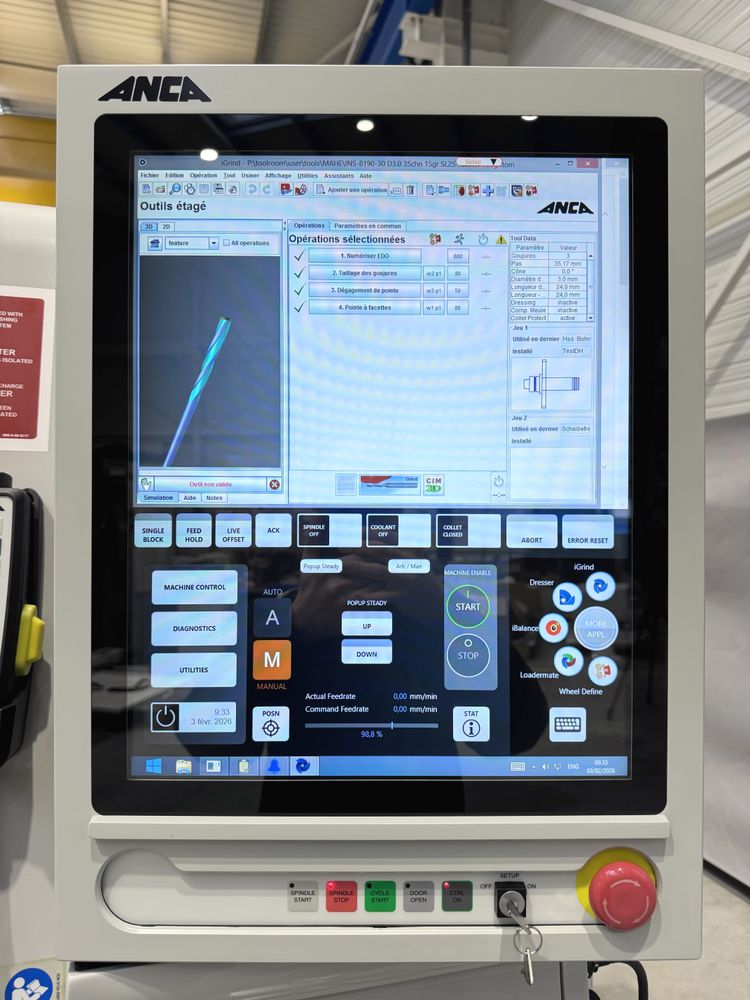

Colour touch screen: 19 ["]
Stroke X axis: 384 [mm]
Resolution X axis: 0.0001 [mm]
Stroke Y axis: 317 [mm]
Resolution Y axis: 0.0001 [mm]
Stroke Z axis: 217 [mm]
Resolution Z axis: 0.0001 [mm]
Stroke A axis: 360 [°]
Stroke C axis: 230 [°]
Resolution C axis: 0.0001 [°]
Max. grinding lenght: 200 [mm]
Max. grinding diameter: 200 [mm]
Grinding spindle attachment: HSK-40F
Max. grinding wheel speed: 10000 [rpm]
Grinding spindle motor power: 12 [kW]
Max. diameter grinding wheel: 203 [mm]
Max. part weight in part holder headstock: 20 [Kg]
Supply voltage: 400 [V]
Total power required: 16 [kVA]
Machine dimensions: 1930 x 1800 x 1810 [mm]
Weight: 4500 [Kg]


EQUIPMENT INCLUDED:

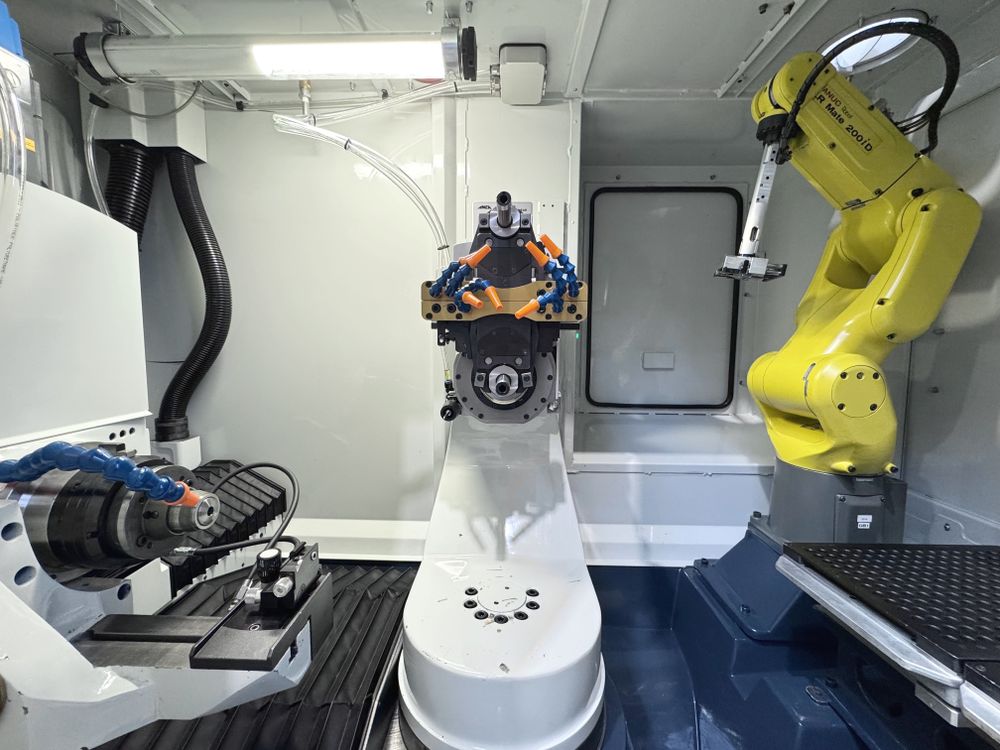

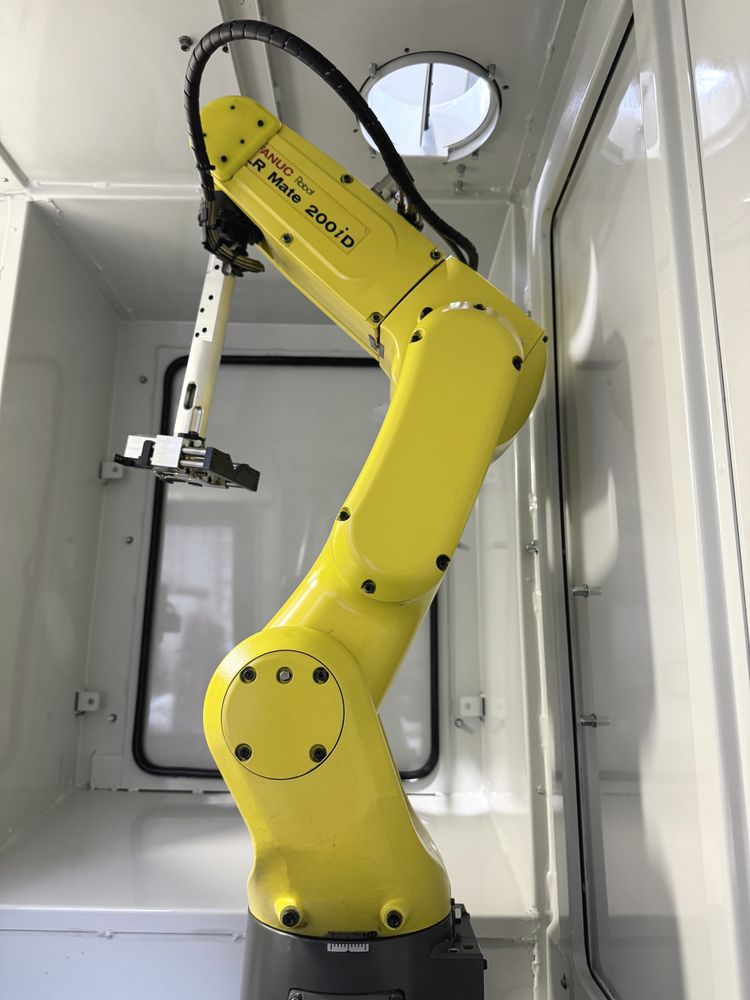

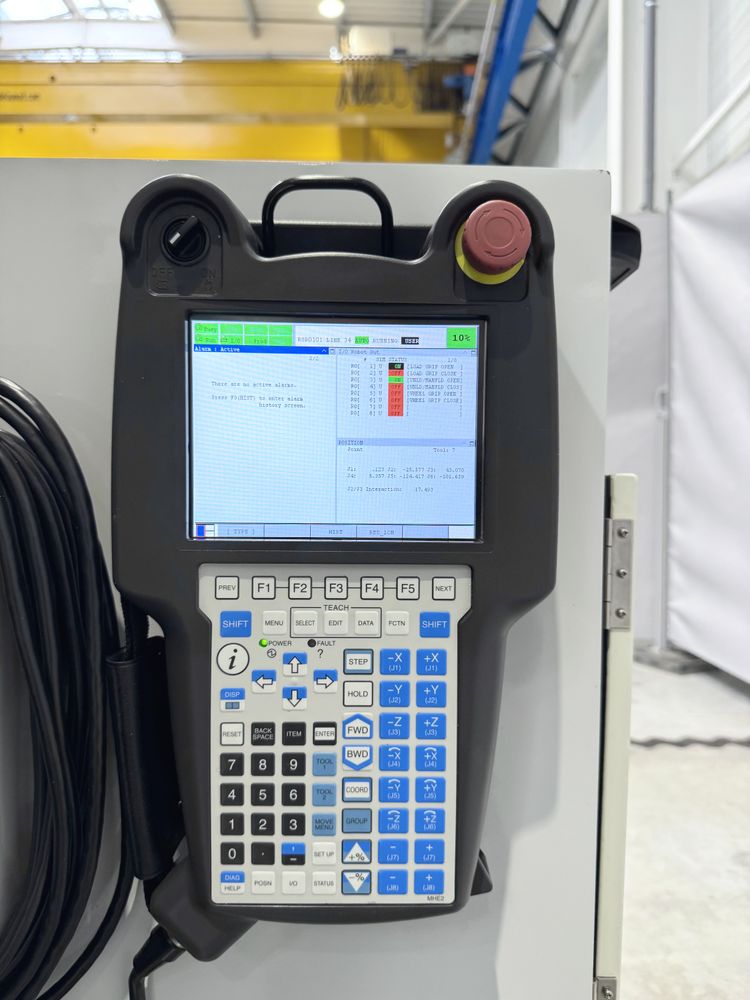

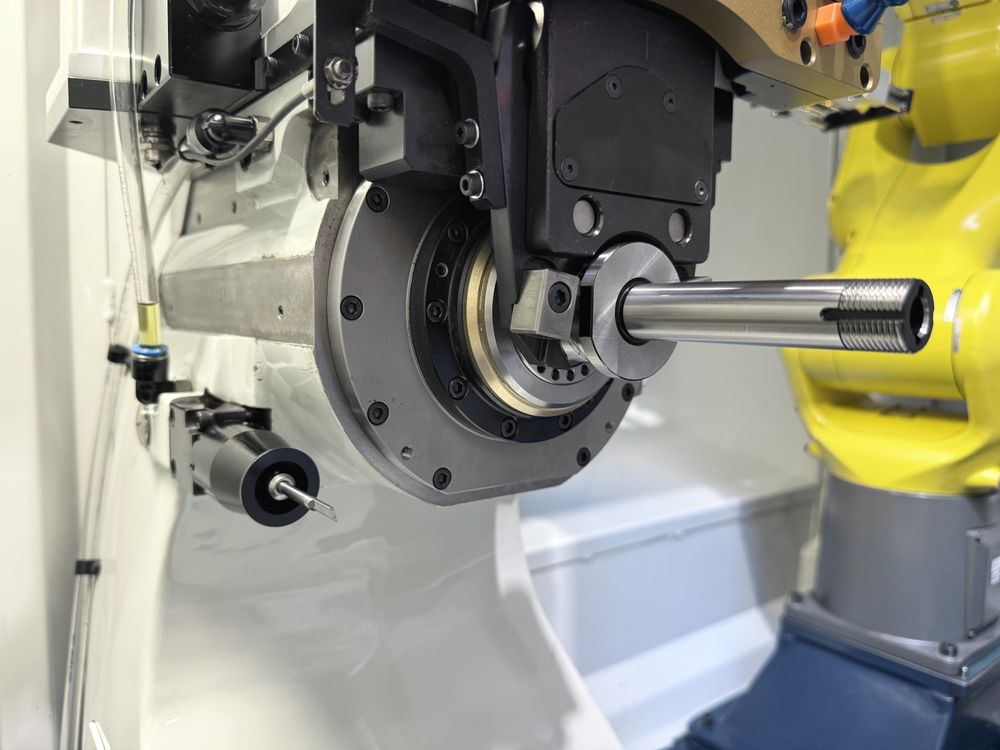

x1 FANUC 6-axis tool-loading robot, model LR Mate 200iD
x2 pallets: 221 stations per pallet – Ø12.00 mm
x1 pallet ‘Teach pallet’ AT996-0-00-0401

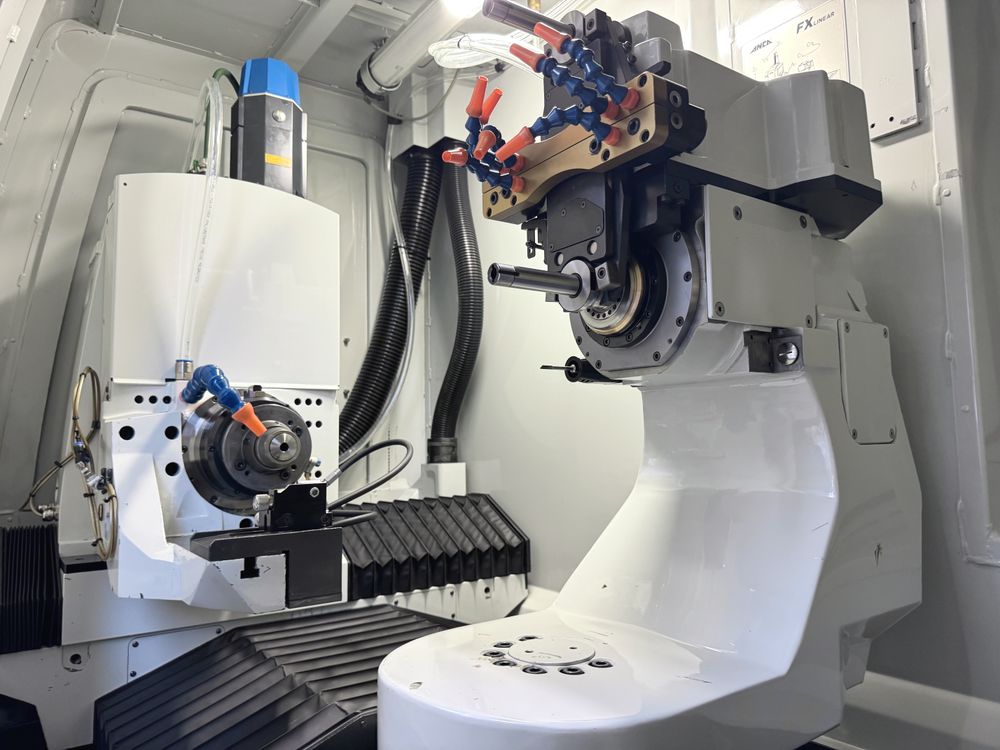

x1 ANCA W25 collet chuck
x1 set of linear glass scales on the X and Y axes
x1 RENISHAW part probe
x1 remote electronic handwheel

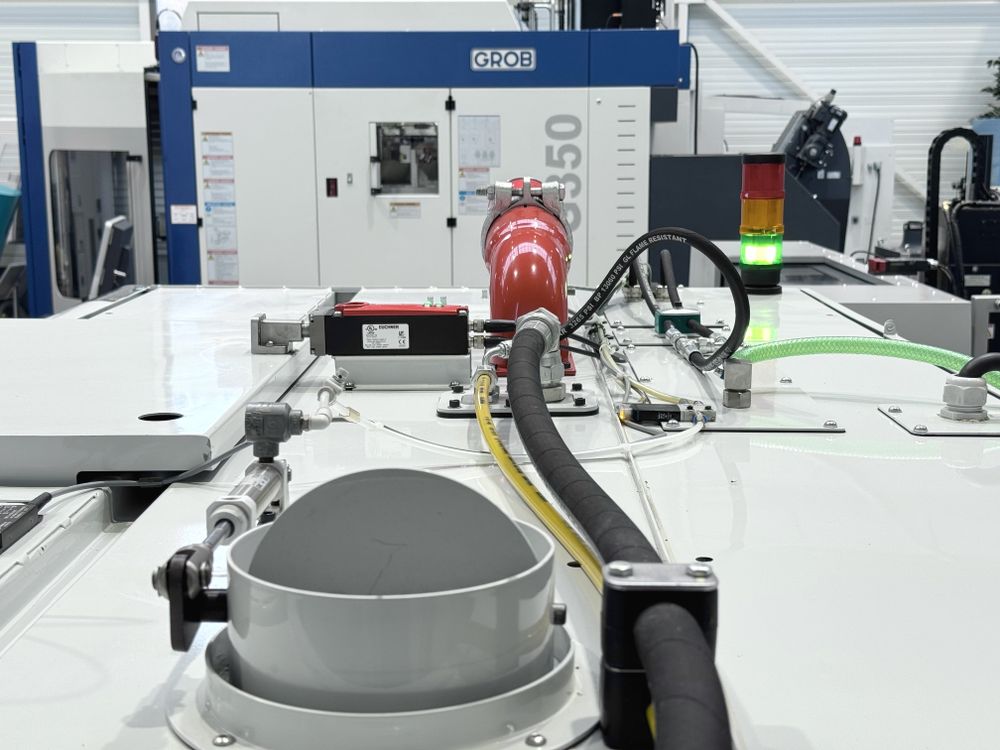

x1 fire protection system - to be inspected by the buyer through a certified organization

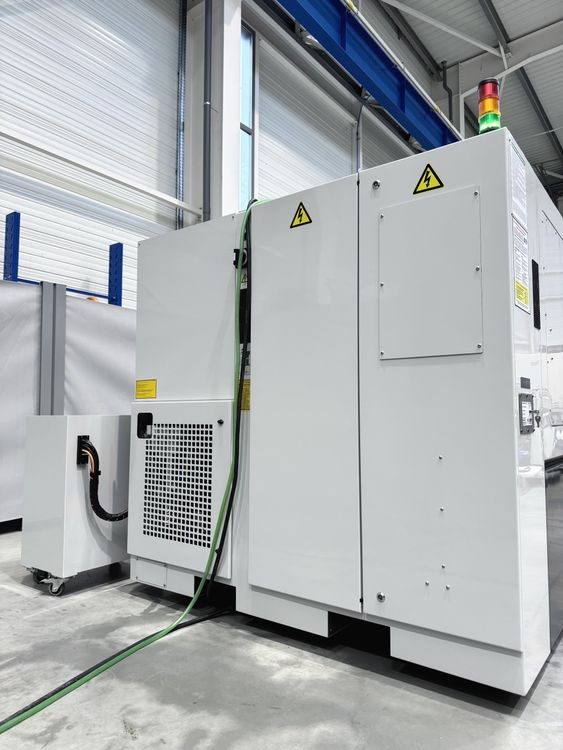

x1 3-color status light
x1 set of transport brackets



Machine visible under power in our premises by appointment.

Price on request, loading on truck included.

Possibility of shipping Worldwide.

The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed.







Machine for sharpening tools, milling cutters, taps and drills.
