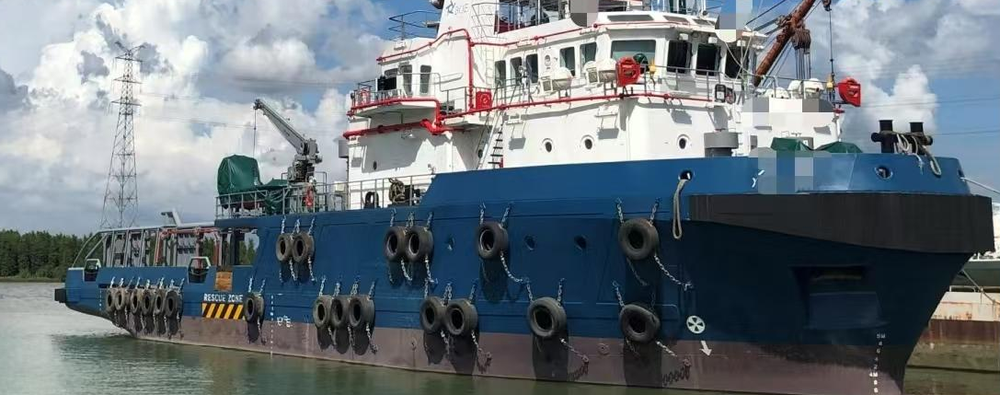

Anchor Handling Tug Vessel 5150HP

5150HP Anchor Handling Tug Vessel
2020


Dimensions & Capacities
L.O.A. 49.95M
Beam MLD. 12.6M
Depth MLD.5.75M
Design Draft 4.5M
Navigation zone Unlimited
Flag China
Built Year 2020
DWT 840T
GT 1019
Fuel Oil Tank 557m³
Fresh water tank 276m³
Ballast water 86m³
cargo Deck Ares 175m²
Speed 12 Knot
BP 65.3MT

Machinery& Propulsion unit
main engine 2575BHP@18RPM
Quantity 2
Power 2575HP*2 ( 5150HP)
Maker Caterpillar
Model 3516C
Propeller Fixed Pitch propeller
Quantity 2 units

Bow Thruster 320KW FPP Type
Quanlity 1
Maker Kawasaki

Bow Thruster Engine 372BKW@1800RPM
Quanlity 1
Maker Caterpillar
Model C18

Complement
2 Single cabins: 2 Men
8 Twin Cabins: 16Men
1 4-Berth Cabins: 4 Men
Total :22 Men

Life Saving
In Compliance With SOLAS Life Saving Requirement

Rescue Boat: 1 Unit *6 Passengers

Lifeboat: 4 units*15 Passengers
