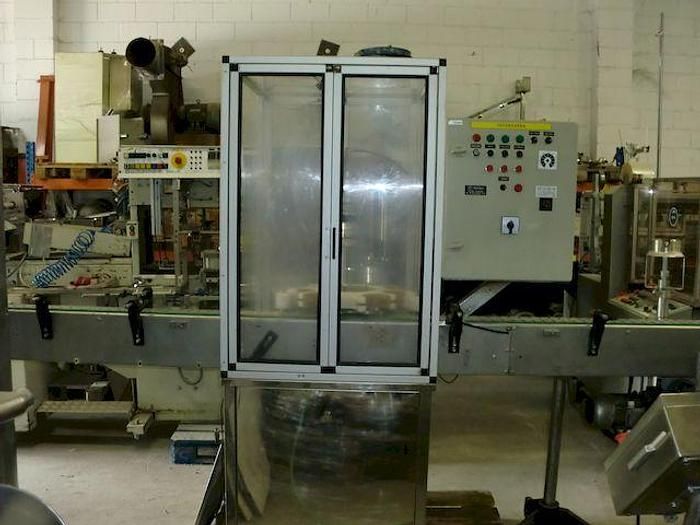

ANCIMO CAP 9000 Capping Machine/Screwdriver

Ref : 2735732-5-GO
Condition : Used
Manufacturer : -
Model : ANCIMO CAP 9000
Short Description : Capping Machine/Screwdriver
Year(s) : 1998
Quantity : 1
Location : Seller or machines location:
EUROPE (Western and Northern)

Machine constructed of stainless steel and gray acetate plate
Band length: 4 meters x 500 mm
Star-shaped and contoured in technical plastic
Crippling head:
Vials are capped using a nozzle that holds the cap on the outside and around which three hardened steel rollers rotate.
Once the necessary pressure is applied, they are responsible for the lower edging of the cap.
The pressure exerted on the cap is adjustable using the spring (no. 3), by loosening the nut (no. 4) and turning the screw (no. 5) (as per diagram 1).
Adjustment for different vial heights is achieved by loosening screws (no. 2) and turning the knob (no. 1), according to diagram 1 of the capping head.
Electrical control panel mounted on the machine.
Maximum speed: 7,000 vials per hour, depending on bottle size.

DIMENSIONS:
Length including belt: 2,550 mm.
Width including belt: 1,690 mm.
Width without belt: 750 mm.
Length without belt: 800 mm.
Height including fairing: 2,100 mm.
