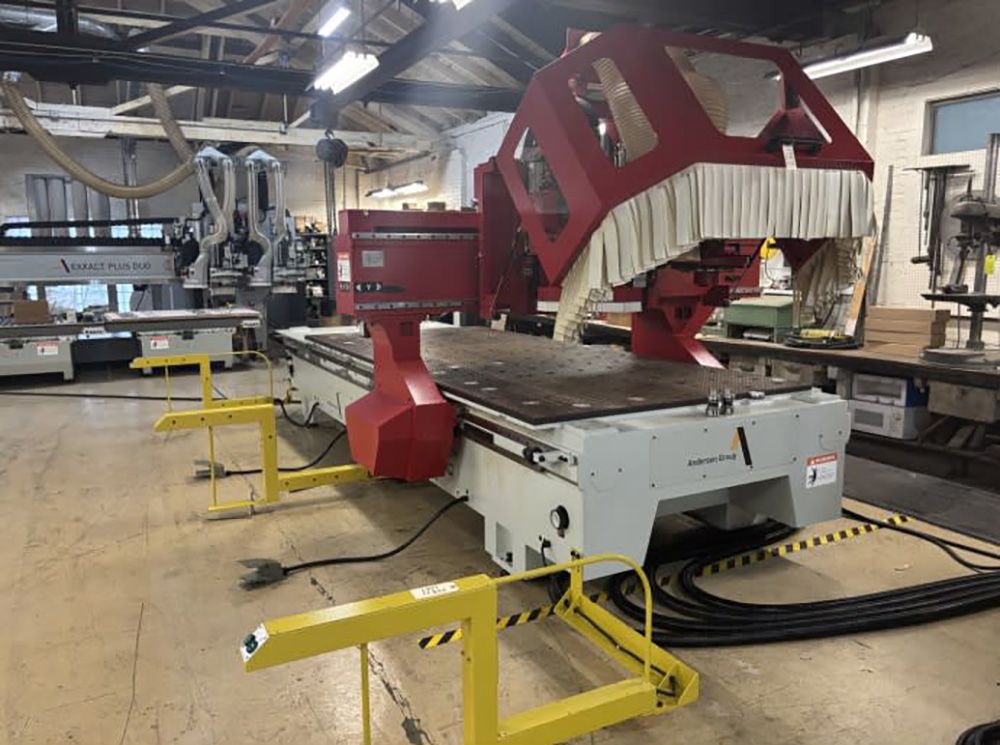

Anderson Stratos/Pro TC+D+C

Used 5' x 12' CNC Router
Equipped with:
1 (one) 18 HP HSK63F Router Head With an 10-Position Automatic Tool Changer And 1 (one) Multiple Spindle Boring Head And Fully Rotational C-Axis.

Table size: 3700 mm x 1600 mm (146” x 63”).
Pop-Up Positioning Pins: 15 (12+3).
Vacuum Zones per Table: 2.

Axis stroke:
X axis: 3900 mm (153”).
Y axis: 2180 mm (86”).
Z axis: 350 mm (13.8”).

Maximum Rapid Rate
X axis: 80 meters/min (3,150”/min).
Y axis: 60 meters/min (2,360”/min).
Z axis: 30 meters/min (1,181”/min).

Maximum Feed rate
X-axis: 80 meters/min (3,150”/min).
Y-axis: 60 meters/min (2,360”/min).
Z-axis: 30 meters/min (1,181”/min)

Spindle #1 - Router Spindle:
Spindle type Anderson 4-Pole Grease.
Motor power 13.5Kw (S6): 11Kw (S1).
Spindle speed (RPM) 1000-22000.
No. of changeable tools 10.
Spindle nose HSK63F.
Full C-Axis INCLUDED.

Spindle #2 - Line Boring Unit:
Spindle type: Line Boring Unit.
Motor Power: 2 HP.
Spindle speed: 4,500 rpm.
Vertical Drills: 10 x 6.
Horizontal Drills: 4.
Drill Shank Dia: 10 mm.

Vacuum hold down system
2 (two) Becker Pump(s):
Power (per pump) 9 HP
Flow (per pump) 168 cfm
Total Pressure 24" Hg

Machine footprint: 251” x 155”.
Floor area Height: 110”.
Net Machine Weight 8,300 Kg* (18,300 lbs.)*not including pump(s).
