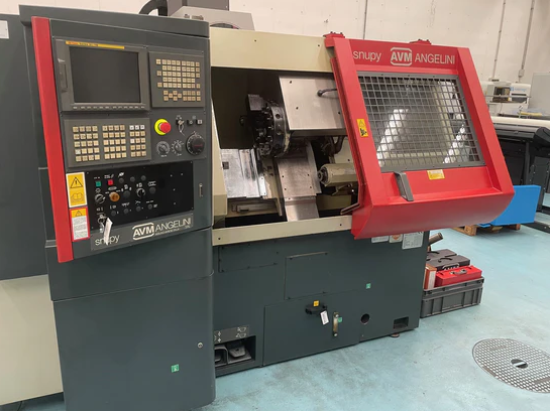

Angelini GE FANUC Series 21i-T 4500 rpm, stepless SNUPY 2 Axis
Ref :
2758543-3-MT
Condition :
Used
Manufacturer :
Angelini
Controller :
GE FANUC Series 21i-T
Spindle Speed :
4500 rpm, stepless
Model :
SNUPY
Nb Of Axis :
2 Axis
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Control: GE FANUC Series 21i-T
Number of Spindles: 1
Number of Turrets: 1
Centre Height: 190 mm
Distance Between Centres: 600 mm
Swing Over Cross-Slide: 165 mm
Swing Over Bed: 320 mm
Spindle Hole Diameter: 42 mm
Z Axis Travel: 360 mm
X Axis Travel: 170 mm
Turret Positions: 12
Spindle Nose: VDI 30
Spindle Taper: Camlock ASA-5
Spindle Diameter: 70 mm
Spindle Speed: 50-4500 rpm, stepless
Longitudinal Feed: 1-10,000 mm/min, stepless
Transversal Feed: 1-6800 mm/min, stepless
Spindle Motor Power: 15 kW
Voltage: 3x380 V, 50 Hz
Machine Weight: 3500 kg
Machine Dimensions: 2600 x 1600 x 1750 mm
Accessories: Collet Device
Accessories: Lamp
Accessories: Parts Catcher
Accessories: Chip Conveyor
