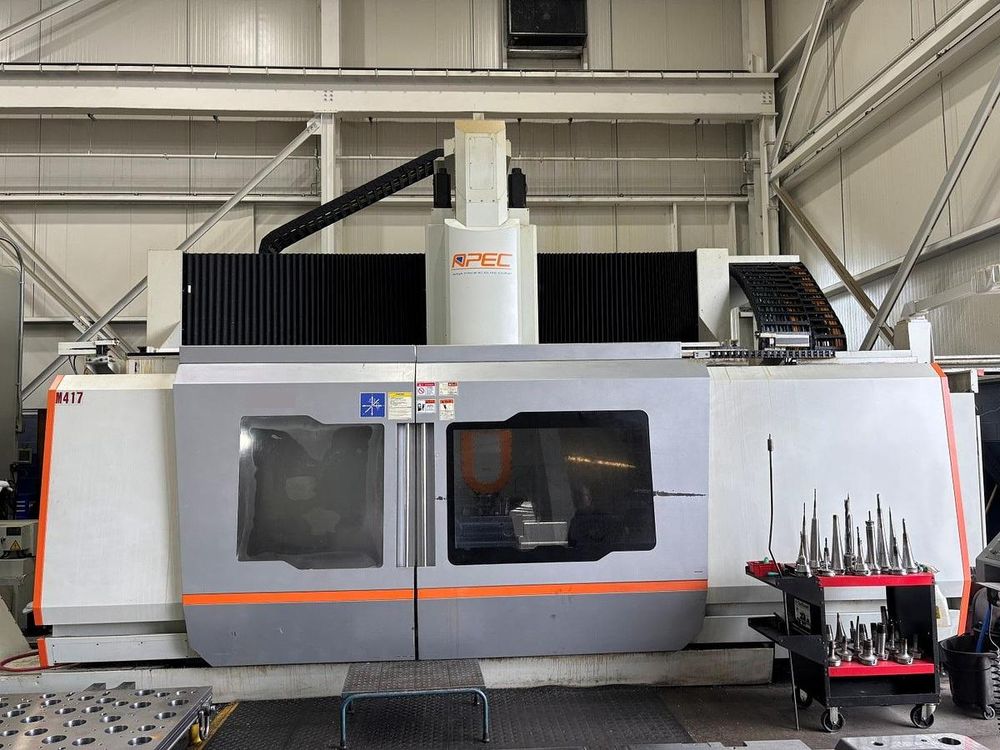

Apec G3020-5L 3 Axis

APEC G3020-5L
2017

X-axis travel: 2000 mm
Y-axis travel: 3000 mm
Z-axis travel: 1000 mm
Table size: 2000 mm x 3000 mm
Table load capacity: 3000 kg/sqm
Distance from spindle nose to table: 40 mm – 960 mm
Floor height to table surface: 450 mm
Spindle speed: 15000 rpm
Spindle taper: HSK 100A
Max rotation speed (A and C axis): 30 rpm
X/Y axis rapids: 60 m/min
Z-axis rapids: 40 m/min
Tool capacity: 40
Machine weight: 40000 kg
CNC controller: Heidenhain iTNC530
Tool measurement system
Double axis nose with built-in spindle
High pressure through spindle coolant
Chip conveyor
Coolant tank
Axis chiller
Spindle chiller
