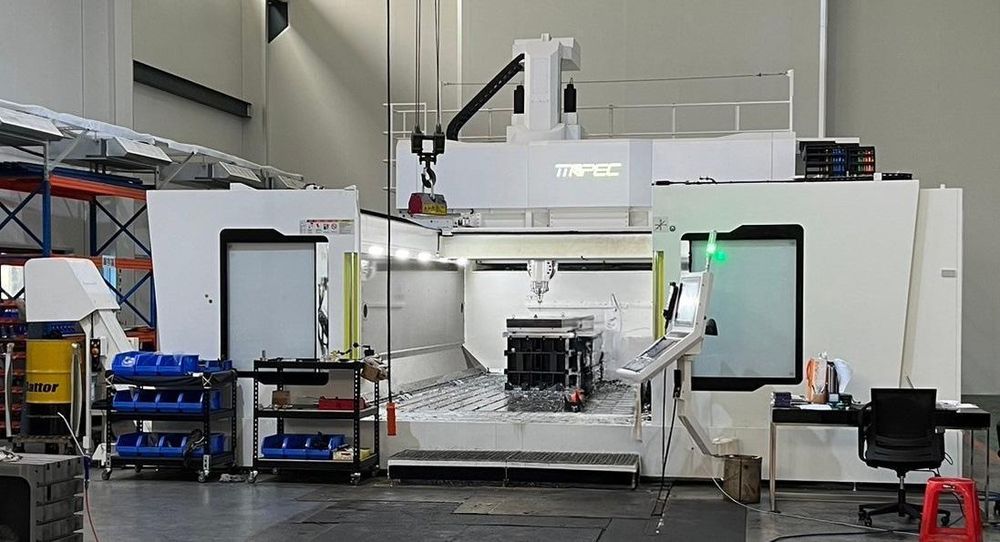

Apec G3060-5L 3 Axis

Technical Data:
X axis travel 236.66 inch
Y axis travel 118.11 inch
Z axis travel 39.37 inch
Axis A +/-125 degree
Axis C 360 degree head rotation
Maximum distance spindle to table top 50.39 inch
Minimum distance spindle to table top 11.02 inch
CNC control Heidenhain TNC640
Table size 236.66 x 118.11 inch
Effective width between columns 118.11 inch
Spindle speed 15000 rpm
Spindle taper HSK-100A
ATC capacity 40
40-position automatic tool changer
Blum tool length measuring system
Blum work piece measuring system
Through spindle coolant system
X Y Z linear guideways
Spindle coolant system
Air conditioner for electrical cabinet
Heidenhain linear scales
Chip conveyor
5-axis auto compensation system
