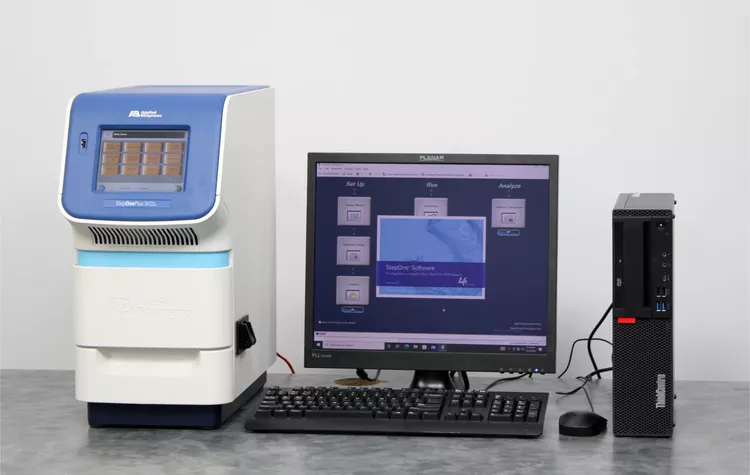

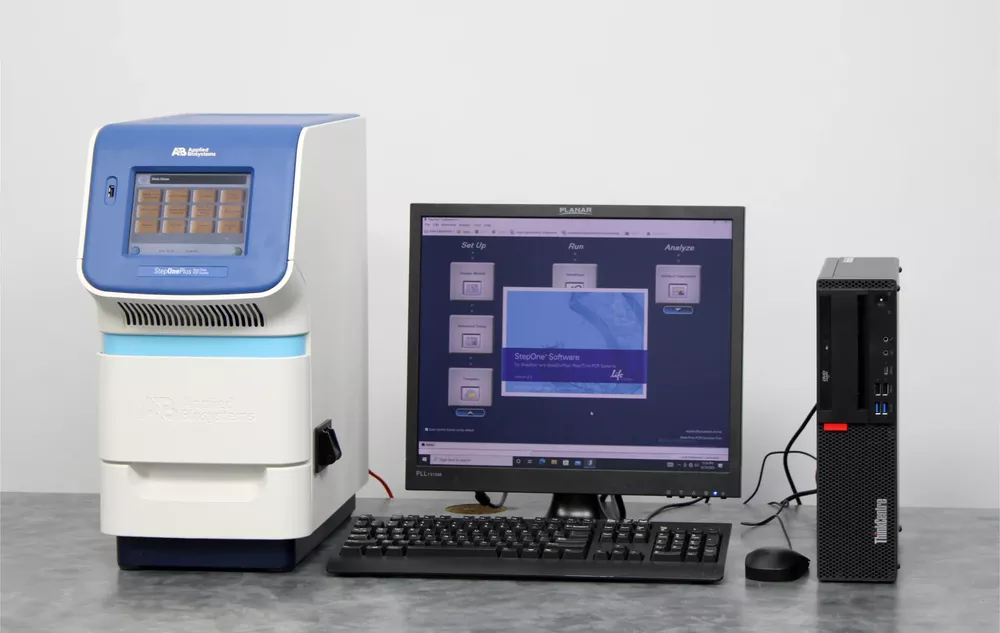

Applied Biosystems StepOnePlus 4376592, 96-Well Real-Time PCR System with PC

Format 96-well plate, 8-tube strips, 0.1ml tubes
Capacity 96 x 0.1 ml tubes, 12 x 8-tube strips, 1 x 96-well plate
Sample ramp rate Fast mode: ±2.2°C/s, Standard mode: ±1.6°C/s
Temperature range 4 to 100°C
Thermal accuracy 0.25°C (35°C to 95°C) of display temperature
Sensitivity 1 copy
Reaction volume range 10-30µl (Standard curve experiments: 40µl in Standard mode is validated
Dynamic range Linear dynamic range greater than 9 log units (detection)
High-throughput compatibility Multiplexing
Passive reference dye ROX (separate tube), No ROX, ROX (pre-mixed)
Calibrated dye VIC, SYBR Green I, ROX, JOE, NED, FAM, TAMRA
Detection method SYBR, Primer-Probe Detection
Optics 4 emission filters, Blue LED excitation source, photodiode
Reaction speed Fast, Standard
Run time
