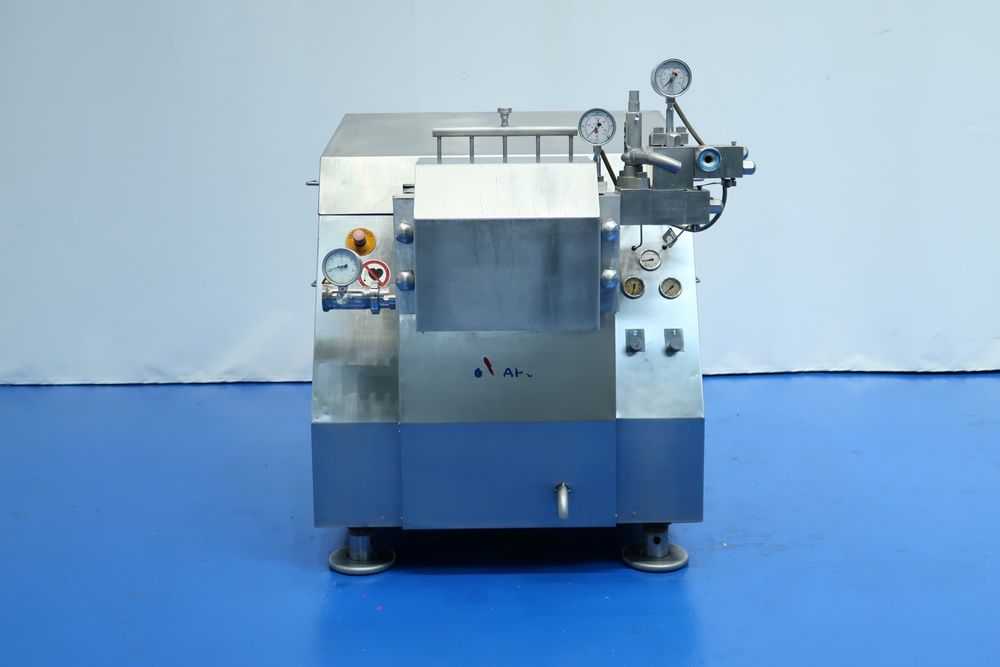

APV 1110 MC 25-4,5 TBS

Capacity 4.200
High pressure homogeniser with Ball valve for viscose products.
2 stage(s) with hydraulic pressure control.
5 Pistons, piston diameter: 38 mm (1,5") and stroke: 115 mm.
Stainless steel cladded.
Motor power: 55 KW and maximum pressure
in current confirguration with this motor 280 bar.
with frequency converter. Overpressure valve.
Inlet filter. Manometer on in and outlet.
Electronic pressure transmitter after 1st stage
and electronic pressure transmitter
with manometer after 2nd stage.
Flowswitch on cooling water.
Pulsation dempers with membrane on inlet and outlet.
Sample crane before and after homogenizing.
Connections, In/Out: 2,5" Din.
Total dimensions: 190x130x147 (lxwxh) cm - weight: 2.666 kg.
