APV Schröder / Gaulin 2642 MC 18-2,5TPS, Homogeniser

Capacity 10.000 liter per hour
Stages 2 stages with Micro-Gap valve
Max. Pressure 175 bar
Valve cylinder Poppet valves
Product Milk
Piston diameter 60 mm
Motor 63 kW - 380 V - 120 Amp - 50 Hz - 1.475 rpm
Dimensions 180 x 120 x 165 cm
Weight 2.560 kg

Description

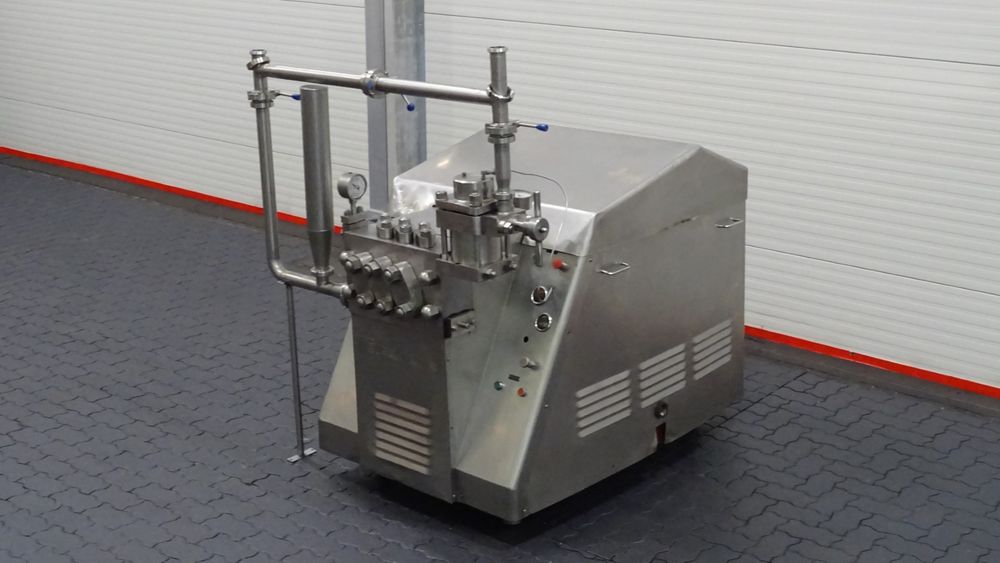

This APV Schröder / Gaulin MC18-2,5TPS homogeniser is a 3-cylinder machine
which is designed for 10.000 liter per hour with a maximum pressure of 175 bar.
The homogensier is equipped with 2-stages with poppet valve cylinder
and a MICRO-GAP homogenizing valve assembly
which is especially for non-abrasive,
low viscosity dairy products.
The highly efficient MICRO-GAP valve will enable to operate at
up to 40% lower pressure, while giving you the same or better product quality
and saves energy and reduction in the machine drive-end loading. Manometers.
Pulsation demper. Motor: 63 kW - 380 V - 120 Amp - 50 Hz - 1.475 rpm.
Oil pumping system inside the machine. Stainless steel cladded.
