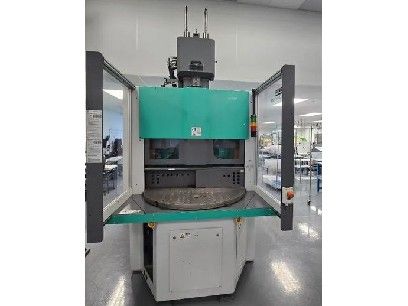

Arburg 1200T 1000-290 102 T
Ref :
2797015-6-AW
Condition :
Used
Manufacturer :
Arburg
Model :
1200T 1000-290
Capacity :
102 T
Year(s) :
2022
Quantity :
1
Location :
Seller or machines location:
AMERICA North (USA-Canada-Mexico)
AMERICA North (USA-Canada-Mexico)
Specification
Clamp Force: 102 US Tons
Shot Size: 3.42 Oz/30 mm
Platen Size: 56.2" x 26.5"
Tie Bar Spacing: 47.4" x 14.7"
Min Mold Ht: 11.81"
Max Weight Movable Mold Half: 882 lbs
Clamp daylight Max: 23.62"
Ejector Stroke: 6.89"
Rotary table dia: 1200 mm/47.24" with 2 Position
Motor size 30 HP
Voltage: 460
Dimensions L x W x H: 171.65" x 67.64" x Confirm
Weight: 20,283 lbs
Equipped With:
Selolgca Direct Control
Vertical Clamp/Vertical Injection or Horizontal Injection
Core Pull
Spare 25 mm Screw (2.3 Oz Included)
