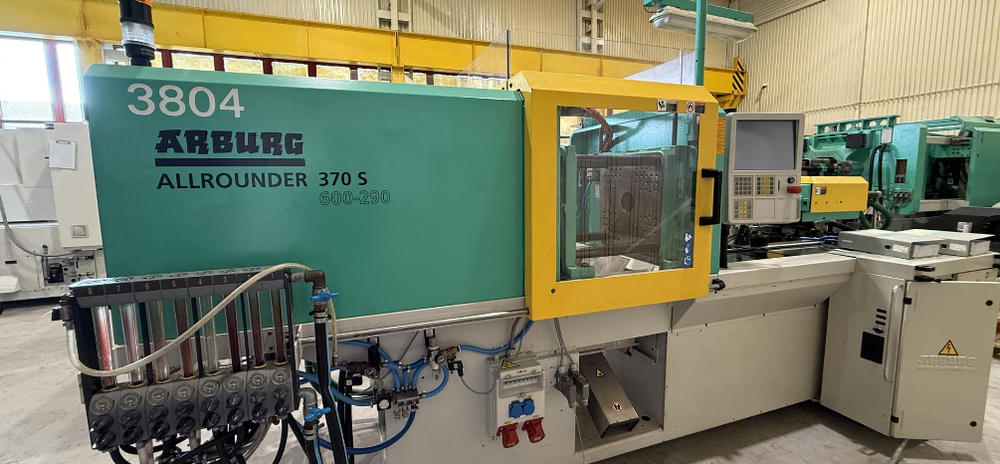

Arburg 370S 600-290 60 T

ARBURG 370 S — 600-290 | Screw ø 35 mm

CLAMPING UNIT
Clamping force: 600 kN
Closing force: 38 kN
Opening force / increased: 24 / 160 kN
Opening stroke: 400 mm
Mould height min.: 200 mm
Daylight max.: 600 mm
Distance between tie bars: 370 × 370 mm
Platen size: 510 × 510 mm
Weight of mov. mould half: 360 kg
Ejector force: 125 kN
Ejector stroke: 125 mm

HYDRAULICS
Drive power: 15 kW
Total connected load: 23,9 kW

INJECTION UNIT — ø 35 mm
Screw stroke max.: 150 mm
Effective screw length L/D: 20
Injection volume max.: 132 cm³
Shot weight max.: 20,5 g PS
Material throughput max.: 10,5 kg/h PS
Injection pressure max.: 2000 bar
Injection flow max.: 140 cm³/s
Injection flow with accumulator: 430 cm³/s
Back pressure max.: 350 / 200 bar
Screw speed max.: 54 m/min
Screw torque max.: 380 Nm
Nozzle contact force: 60 kN
Nozzle retraction stroke: 240 mm
Heating zones / power: 4 zóny / 5,8 kW
Nozzle heating: 0,6 kW
Hopper capacity: 50 l

DIMENSIONS & WEIGHT
Oil capacity: 135 l
Net weight: 3300 kg
Electrical connection: 80 A
