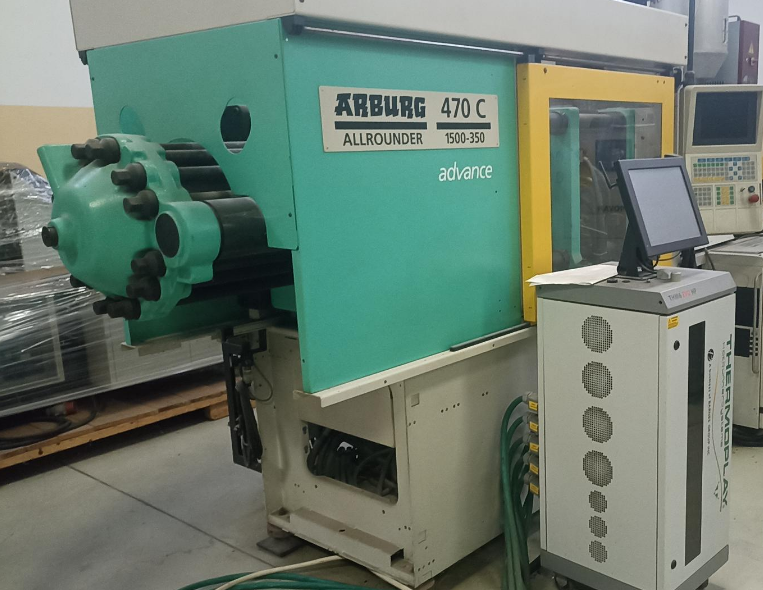

Arburg 470 C 1500-350 150 T

Working hours : only 7.113 h
Clamping Force: 150 tons
Tie-bar Spacing: (H × V): 470 mm × 470 mm
Maximum Plate Size : 650 mm × 650 mm
Minimum Mould Installation Height: 250 mm
Maximum Distance between Platen (when fully open): ~750 mm
Mould Opening Stroke : 500 mm
Screw Diameter: 45 mm
Approximate Shot Volume (Injection Volume): 230 cm³
Approximate Shot Weight (for PS): 210 g
Injection Pressure: 1 670 bar
Motor/Drive Power: Example listing ~ 37 kW servo/hydraulic drive power
Heating Power: Example listing ~ 10.2 kW
Machine Dimensions (Length × Width × Height): 5.4 m × 2.0 m × 2.2 m
Machine Weight:4 500 kg
