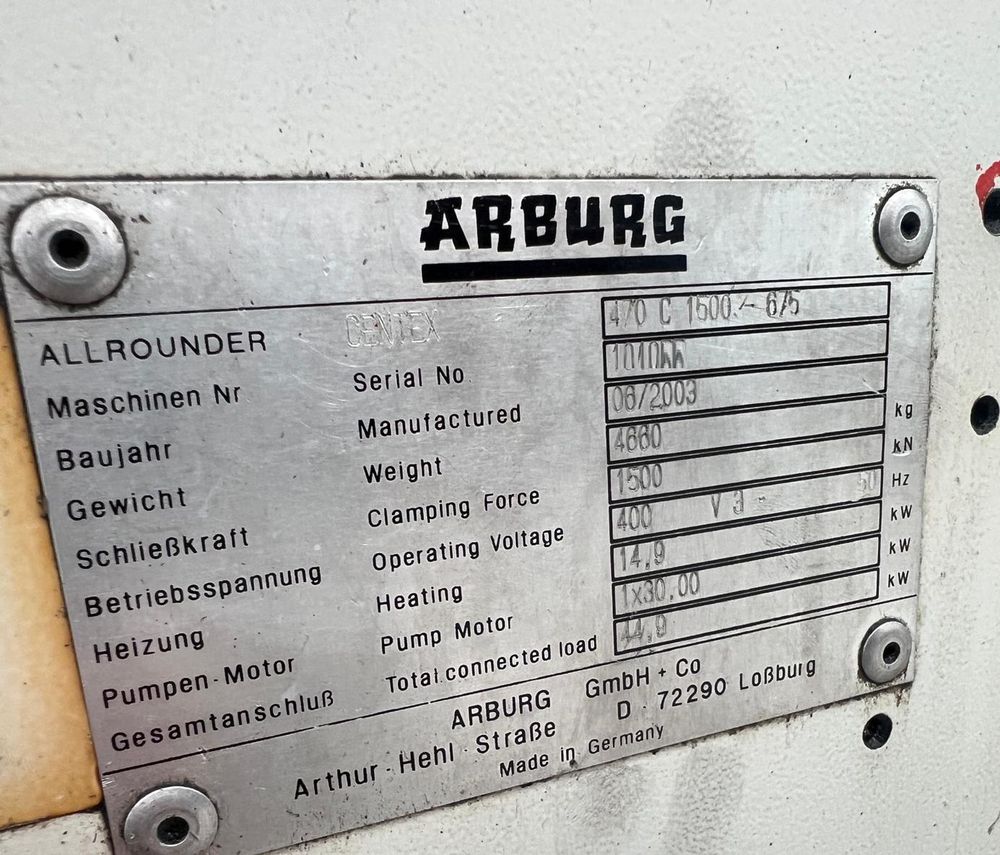

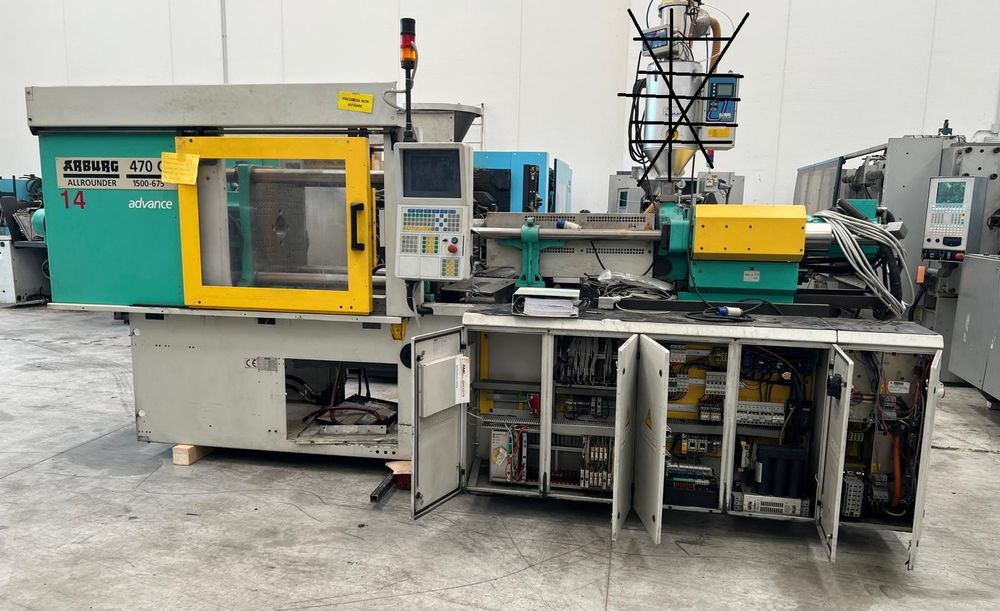

Arburg 470-C-1500-675-CE-

Clamping force: 1,500 kN (150 tons)
Opening stroke: 500 mm
Distance between platens: 750 mm
Tie-bar spacing: 470 x 470 mm
Platen dimensions (WxH): 650 x 650 mm
Ejection: Hydraulic
Max. ejection stroke: 175 mm
Ejection force: 40 kN
Pump motor: 30 kW
Max. installed power: 44.9 kW
Oil tank capacity: 235 L
Injection unit: 675
Screw diameter: 45 mm
Screw L/D ratio: 22 L/D
Max. shot volume: 286 cm3
Injection rate: 174 cm3/s (max.)
Max. shot weight: 261 g (PS)
Operating pressure: 2,500 bar (max.)
Weight: 4,660 kg
Notes: Electric motor on the plasticizing unit (inverter)
Accessories such as dehumidifier and loader excluded; hopper not included
