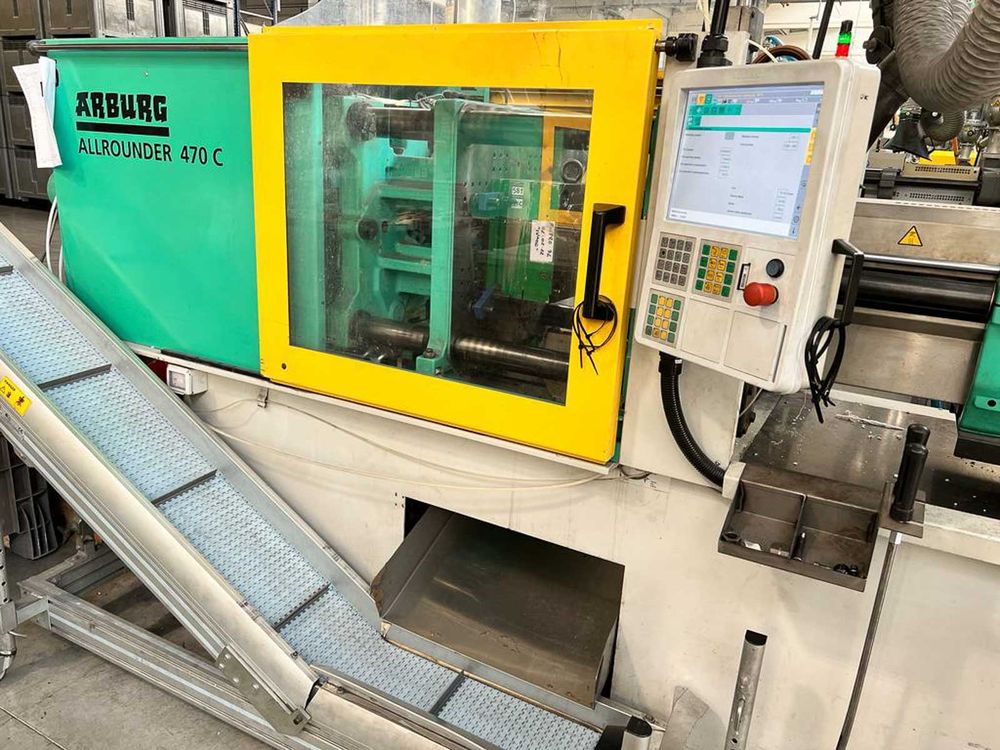

Arburg 470 C 1500 - 800 150 T
Ref :
2718779-6-GO
Condition :
Used
Manufacturer :
Arburg
Model :
470 C 1500 - 800
Capacity :
150 T
Year(s) :
2010
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Clamping force 1.500 kN
Air Valves 2
Core pulls 1
Dimensions (long x wide x high) 7.000 x 2.100 x 2.300 mm
Distance between tie-bars (h x v) 470 x 470 mm
Injection pressure 2.000 bar
Injection volume 392 cm³
Mould height min 250 mm
Mould opening stroke max 500 mm
Platen size (h x v) 650 x 650 mm
Power: installed max 22 + 44 kW
Screw diameter 50 mm
Weight 5.500 kg
