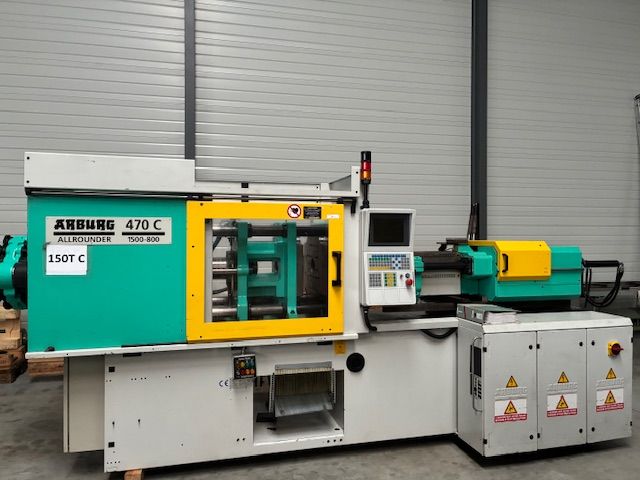

Arburg 470 C 800 150 T
Ref :
2785317-6-MT
Condition :
Used
Manufacturer :
Arburg
Model :
470 C 800
Capacity :
150 T
Year(s) :
2005
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Injection Unit
Screw Diameter: 50 mm
Calculated Injection Volume: 359 cm³
Length/Diameter Ratio: 20 L/D
Maximum Injection Flow Rate: 214 cm³/s
Material Pressure: 656 bar
Plasticizing Capacity (PS): 359
Closing Unit
Closing Force: 1500 kN
Opening Stroke: 500 mm
Minimum Mold Thickness: 250 mm
Maximum Distance Between Platters: 750 mm
Passage Between Columns: 470 x 470 mm
Platters Dimensions: 650 x 650 mm
General
Total Installed Power: 46 kW
Weight: 5150 kg
Other
Equipment: Year 06/2005 With TECNOMAGNETE magnetic turntable
In service: 2005
Tonnage: 150
