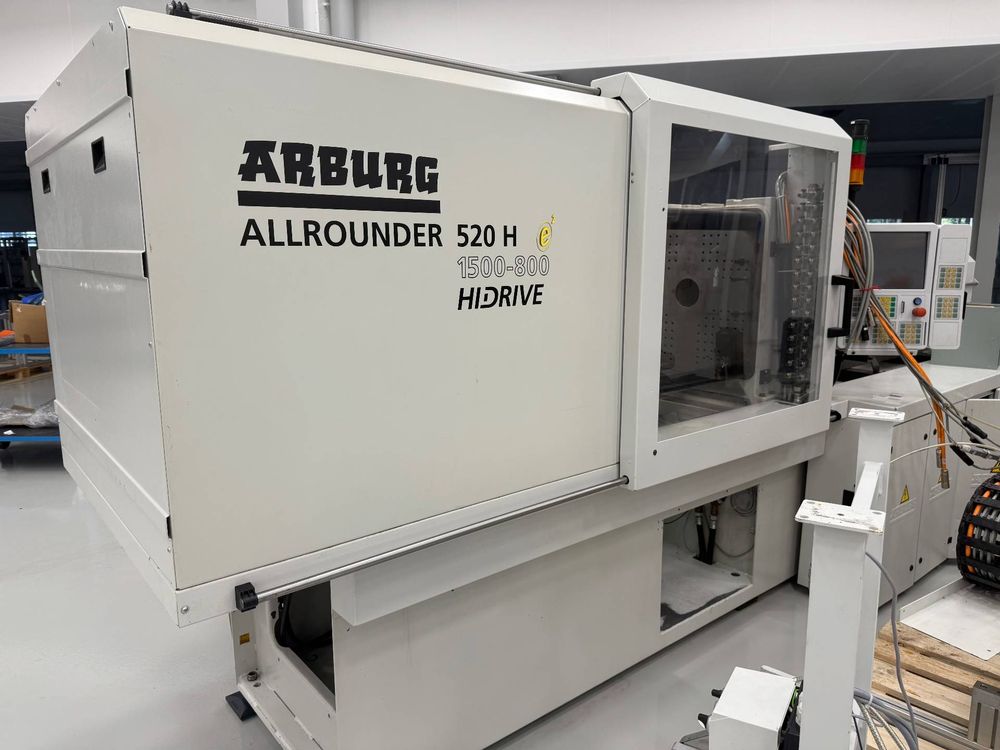

Arburg 520 H 1500-800 150 T
Ref :
2745967-6-AW
Condition :
Used
Manufacturer :
Arburg
Model :
520 H 1500-800
Capacity :
150 T
Year(s) :
2010
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Clamping unit
Clamping force 150 ton
Opening stroke 450 mm
Distance between tie bars 520 x 520 mm
Mould height min. 250 mm
Mould height max. 700 mm
Platen size (h x v) 695 x 695 mm
Injection unit
Screw diameter 45 mm
Injection volume 315 cm³
Shot weight 291 g
Injection pressure 2470 bar
Measurements and weight
Dimensions 5,1 x 1,7 x 2,3 m
Machine weight 7900 kg
Additional information & extras
Accumulator1 pcs
