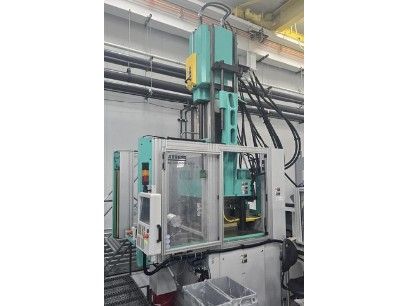

Arburg 520V-1600-800 176 T

Ref : 2753595-6-AW
Condition : Used
Manufacturer : Arburg
Model : 520V-1600-800
Capacity : 176 T
Year(s) : 2014
Quantity : 1
Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

Only 4.200 Hours
Clamp Force: 176 US Tons
Shot Size: 10.3 Oz/45 mm
Platen Size: 30.7" x 30.7""
Tie Bar Spacing: 20.47" x 20.47"
Min Mold Ht: 15.75"
Max Weight Movable Mold Half: 882 lbs
Clamp daylight Max: 27.56"
Ejector Stroke: 6.89"
Motor size 40 HP
Voltage: 460
Dimensions L x W x H: 147.05" x 52.76" x 163.39" Con
Weight: 14,771 lbs

Equipped With:
Selogica Direct Control
Vertical Clamp/Vertical Injection
Stage 2 Servo Regulator
Printer Interface
(2) Air Blows
Core Pull
Pneumatic Safety Gate
8 Programmable I/O's
6 Heating Zones for Mold
1 Freely Programmable Page
Interface for LSR Pumping Unit
