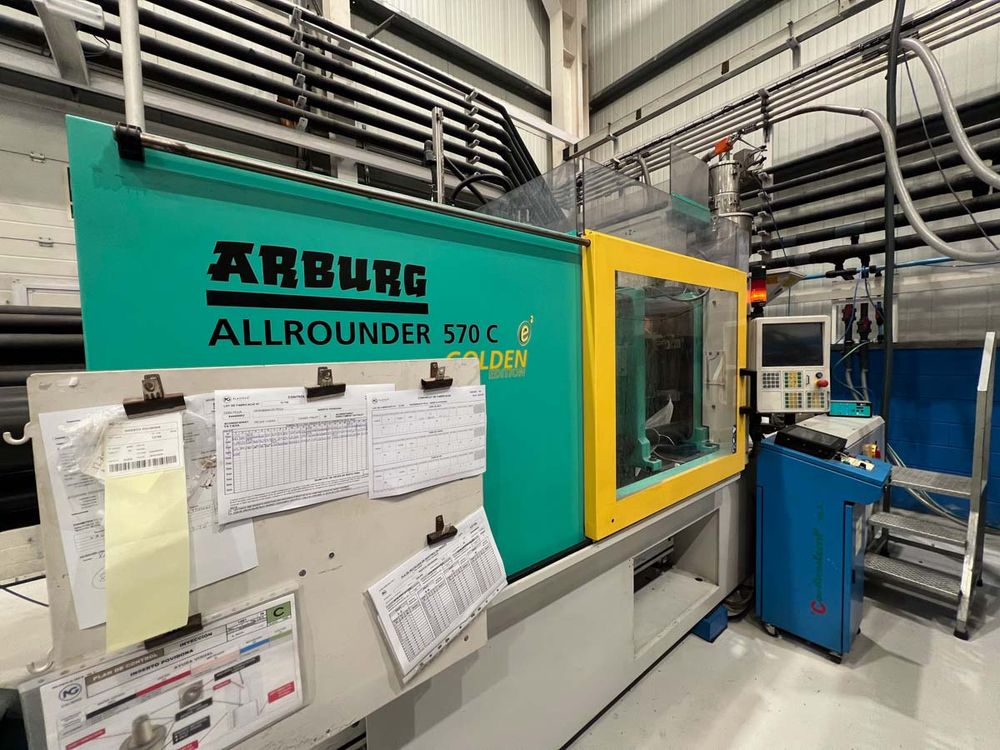

Arburg 570 C Allrounder 2000 - 800 200 T

with MULTILIFT Robot
Clamping force 2000 kN
Barrel heating capacity 19.9 kW
Daylight between platens max 950 mm
Distance between tie-bars (h x v) 570 x 570 mm
Dry cycle time 2,6 - 399 sec/mm
Ejector force 66 kN
Ejector stroke 225 mm
Heating zones 8
Injection pressure 1650 bar
Injection rate 260 cm³/s
Injection volume 474 cm³
Max mold weight 1.5 T
Mold opening force 520 kN
Mould height min 300 mm
Mould opening stroke max 650 mm
Nozzle stroke / force max. 400 / 70 mm / kN
Oil tank capacity 290 l
Plasticizing capacity (PS) 16.4 g/s
Platen size (h x v) 795 x 795 mm
Power: installed max 45 kW
Pump motor capacity 22 kW
Screw diameter 55 mm
Screw L/D ratio 18
Screw stroke 200 mm
Shot weight max 434 g
Weight 7450 kg
