1/1
Arburg 630 S 2500 - 1300 250 T
Ref :
2759336-6-AW
Condition :
Used
Manufacturer :
Arburg
Model :
630 S 2500 - 1300
Capacity :
250 T
Year(s) :
2004
Quantity :
1
Location :
Seller or machines location:
EUROPE (Central and Eastern)
EUROPE (Central and Eastern)
Last check :
28 Jan. 2026

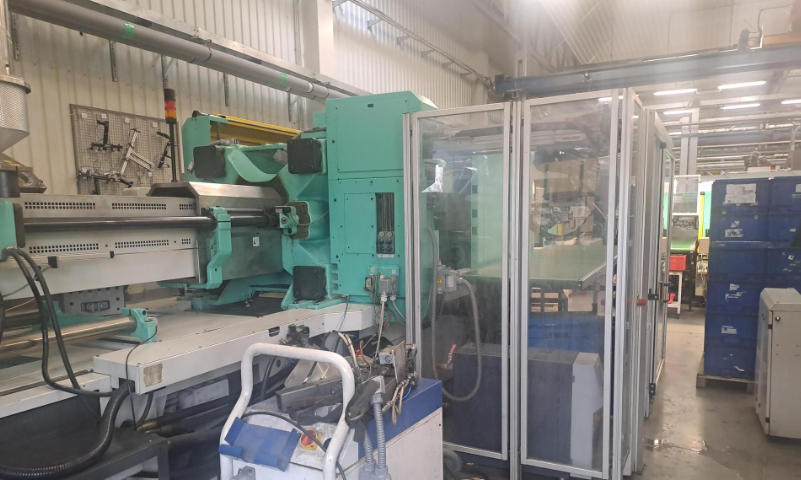

Arburg 630 S 2500 - 1300 with robot Multilift H mit B-Actise
Clamping force: 250 t
Tie-bar spacing: 630 × 630 mm
Platen size: 900 × 900 mm
Mold height (Min / Max): 300 – 700 mm
Maximum daylight (open space): 1,300 mm
Opening stroke: 600 mm
Ejector stroke: 225 mm
Ejector force: 86 kN
Screw diameter: 55 mm
Shot volume: 558 cm³
Injection pressure: ~2,380 bar
Number of heating zones: 12
Control system: Selogica
Machine dimensions: 6.4 m × 2.1 m × ~2.2 m (L × W × H)
Machine weight: 14,000 kg
Installed power / electricity: ~68 kW
Robot / automation interface: Euromap 2500‑1300
Core pullers: hydraulic
