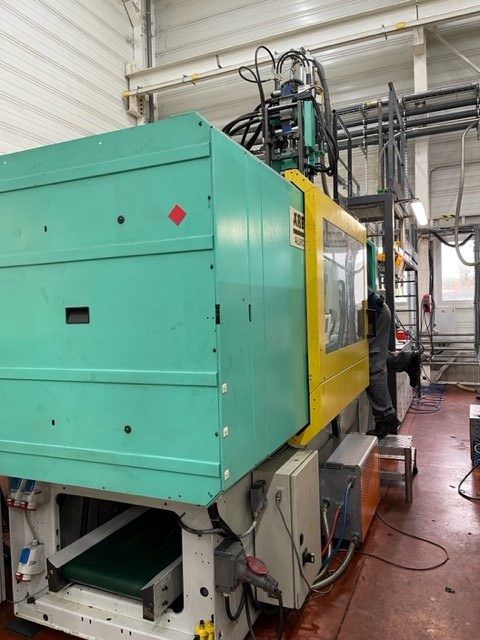

Arburg 630S-2500-1300/350 250 T

Number of hours: 68500h

Closing unit
Closing force: 250T
Passage between columns: 630 x 630mm
Dimensions of the Trays: 900 x 900mm
Opening race: 630 x 630mm
Minimum-maximum mold thickness: 300-600mm
Distance between platforms: 900-1300mm
Ejection stroke: 225mm

Injection unit
Screw diameter: 55-35mm
Injection pressure: 2380-2500 bar
Injectable volume: 558-139cm3
Injectable weight: 510-127g

Others
Control command: SELOGICA
Number of nuclei: 2
Robot interface: E67
Air blowers: 2
Dimensions (L x W x H): 6385 x 2245 x 3950mm
Weight : 14500kg

Equipped with an ARBURG 243849 rotating base from 2012
