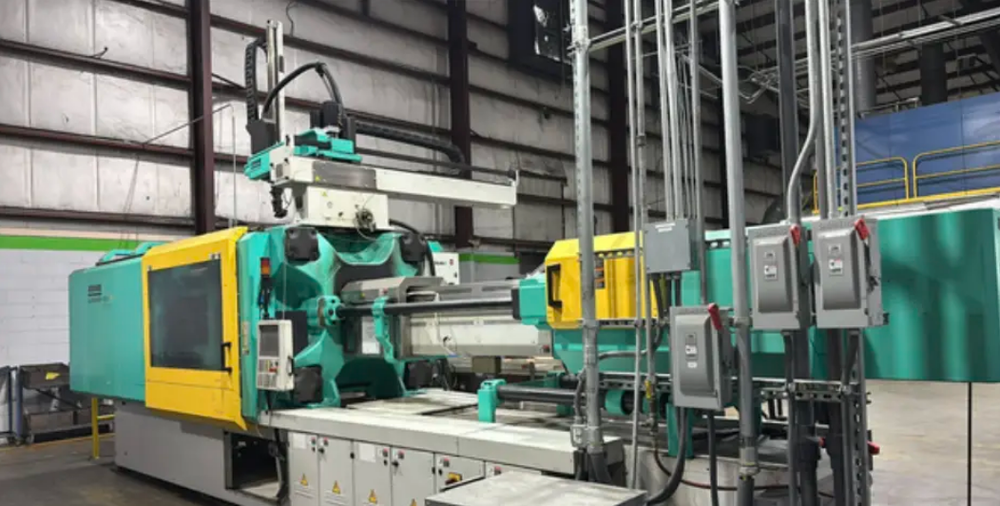

Arburg 920S-5000-3200 500 T

Clamping Unit
Clamping Force: 5000 kN
(approximately 500–560 tons depending on metric/US standards).
Tie Bar Spacing (H x V): 920 x 920 mm.
Plate Size (H x V): 1280 x 1280 mm.
Mold Height: 400 mm (min) to 1050 mm (max).
Opening Stroke: Maximum 900 mm.
Maximum Daylight: 1950 mm.

Injection Unit - 3200 Series
Screw Diameter: Available in several variants, generally 70 mm, 80 mm, or 90 mm.
Maximum Injection Volume:
70 mm Screw: 1078 cm³.
80 mm Screw: 1407 cm³.
Maximum Injection Pressure: Up to 2000–2500 bar
(depending on the selected screw diameter).
Plasticization Capacity: Approximately 185 to 250 kg/h.

Key Features & Technologies
Control System: Typically uses an intuitive SELOGICA or GESTICA control unit
for graphical sequence programming.
Drive Technology: Available with Servo Hydraulics (ASH) option for
higher energy efficiency and reduced noise.
Automation: Often bundled with linear robotic systems such as MULTILIFT V or
MULTILIFT SELECT via a Euromap 12 or 67 interface.
Modular Design: Supports multi-component configurations
(printing more than one material type simultaneously).
