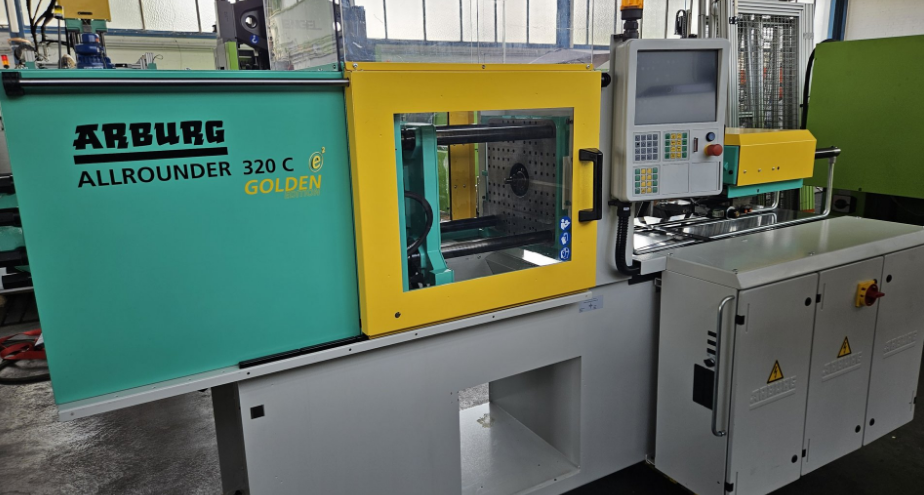

Arburg Allrounder 320 C 500-170 Golden Edition 50 T
EUROPE (Western and Northern)
Steering: SELOGICA
Year of construction: 2015
Operating hours: 24767 hours
Technical data closing side
Closing force: 500 kN
Holmass hxv: 320 x 320 mm
Plate size hxv: 446 x 446 mm
Minimum installation height: 200 mm
Maximum plate spacing: 550 mm
Opening path: 350 mm
Ejector stroke: 125 mm
Ejector force: 30 kN
Centering movable plate D: 125 mm
Centering fixed plate D: 125 mm
Tool weight: 540 kg
Technical data spray side
Screw diameter: 30 mm
Displacement: 85 cc
Injection pressure: 2000 bear
Screw length: 20 l/d
Worm torque: 250 N
Injection flow to the outside: 96 g/s hp
Number of heating zones: 4
Dimensions & Weight
Machine dimensions LxWxH: 3.41 m x 1.48 m x 1.99 m
Total weight: 2400 KG
equipment
Screen text German
CEE socket 16A
Core pull hydraulically prepared 2x
Machine with water battery
Machine without material hopper
Leveling elements
EUROMAP 67 Handling interface
EUROMAP 73 interface
Schuko socket 10A
