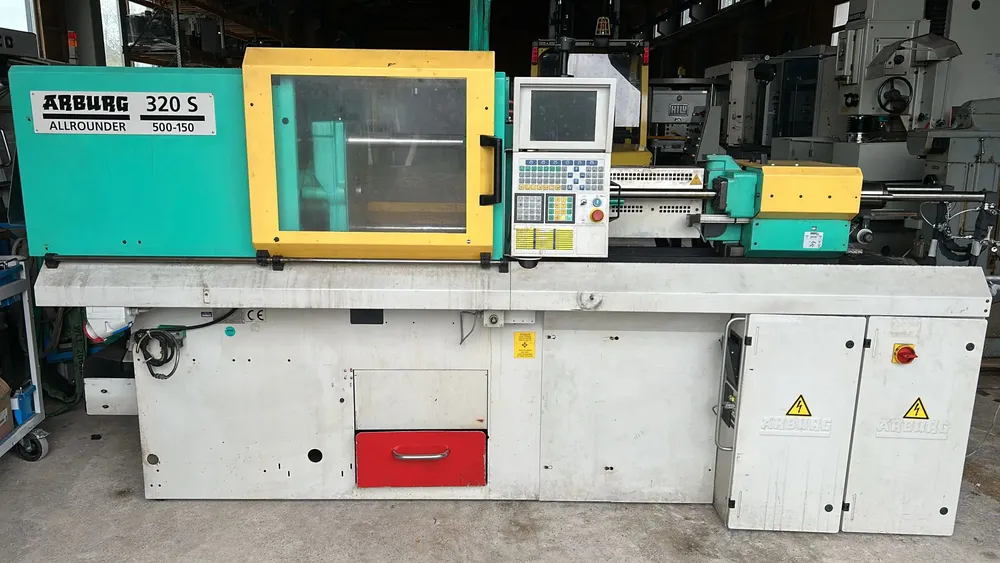

Arburg Allrounder 320S 500-150 50 T

Model: Allrounder 320 S 500 – 150 (Selecta)
Year of manufacture: 1999
Operating hours (machine): 139,541 h
Total connected load: 35.5 kW
Total rated current: 66 A
Electrical connection values
​​Operating voltage: 400 V (3~ / 50 Hz)
Control voltage: 230 V (~ / 50 Hz) DC
control voltage: 24 V (DC)
Rated current (motor/heater): 54.0 A / 12.0 A
Machine dimensions & weight
Length: approx. 3.40 m to 3.80 m (depending on the injection unit design)
Width: approx. 1.43 m
Height: approx. 2.00 m
Total weight: approx. 2,250
kg Tie bar spacing (h x v): 320 mm x 320 mm
Platen size (h x v): approx. 445 mm x 445 mm
(or up to 498 mm depending on the version)
Minimum mold installation height: 225 mm
opening travel, 350 mm
clear panel spacing (max.): 575 mm
