Arburg Allrounder 370 U 600-290 60 T
Ref :
2794887-6-AW
Condition :
Used
Manufacturer :
Arburg
Model :
Allrounder 370 U 600-290
Capacity :
60 T
Year(s) :
2006
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)

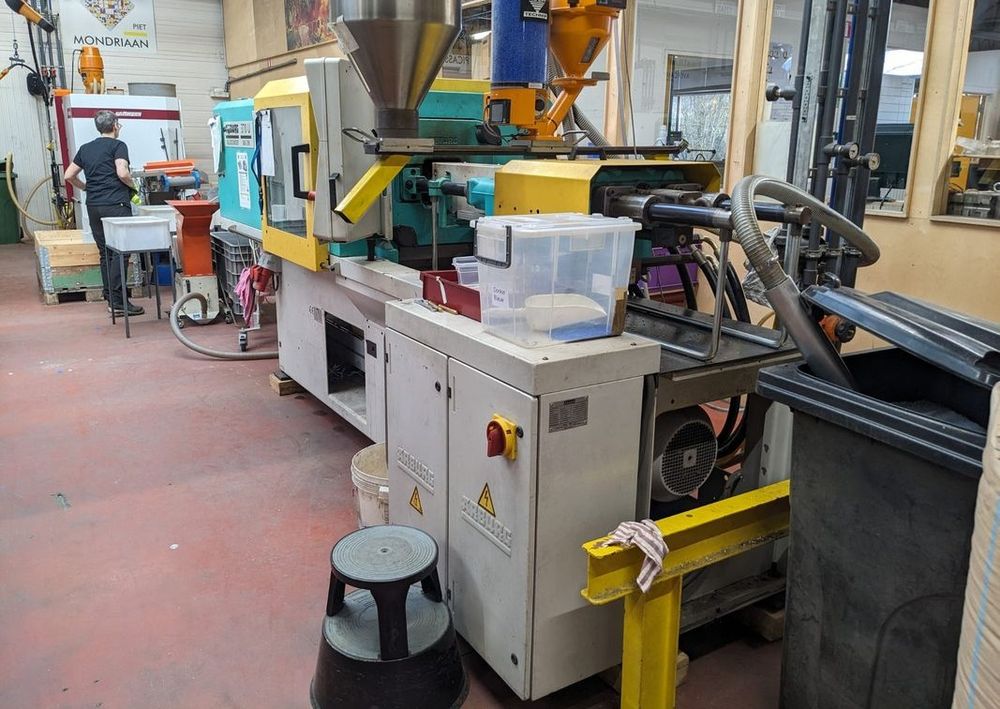

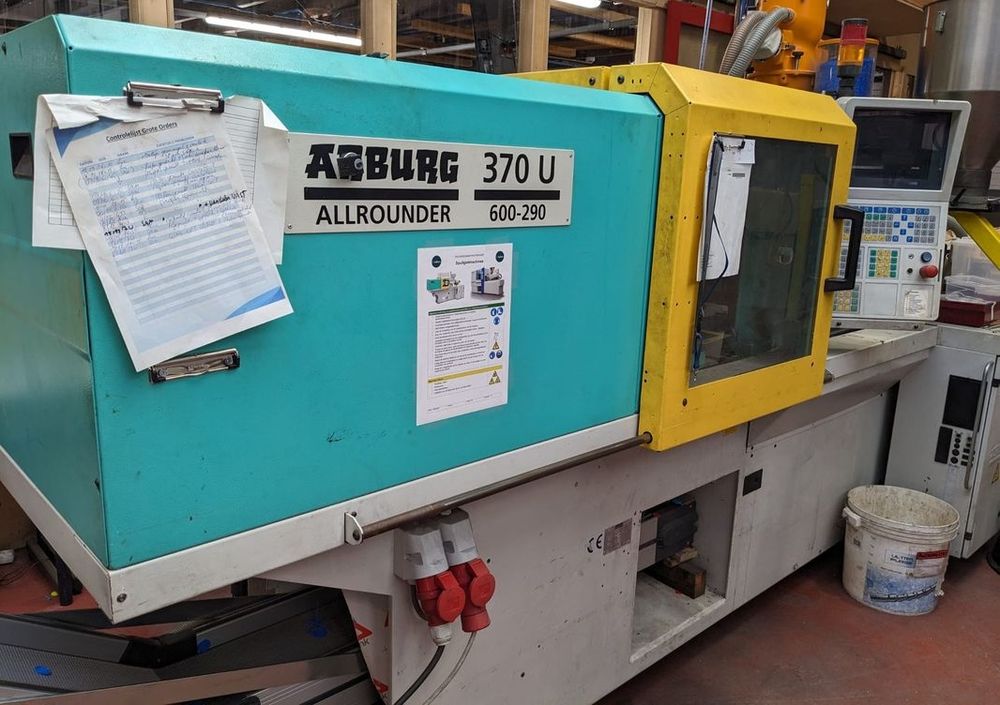

ARBURG ALLROUNDER 370 U 600-290 INJECTION PRESS
Brand: ARBURG (Made in Germany)
Model: Allrounder 370 U 600-290
Year: 01/2006
TECHNICAL SPECIFICATIONS:
• Clamping force: 600 kN (60 tons)
• Injection unit: EUROMAP 290
• Screw Ø35 mm
• Max. injection volume: 144 cm³
• Max. injection pressure: 2,000 bar
• Column spacing: 370 x 370 mm
• Mold platen: 510 x 510 mm
• Min. mold height: 200 mm
• Max. distance Distance between platens: 600 mm
• Opening stroke: 400 mm
• Ejector: 30 kN / 125 mm

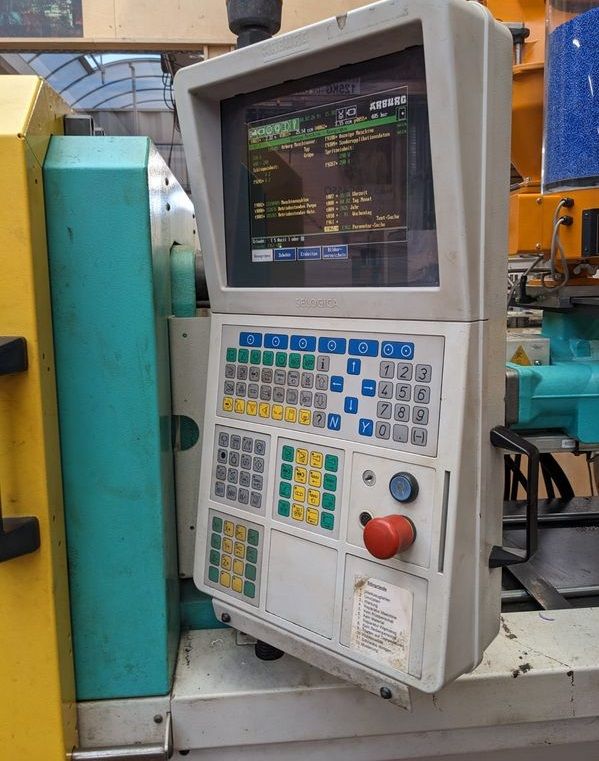

• Control: Selogica (ARBURG)
• Power supply: 400 V / 3~ / 50 Hz
• Total power: 37 kW
• Machine weight: ~3,500 kg
