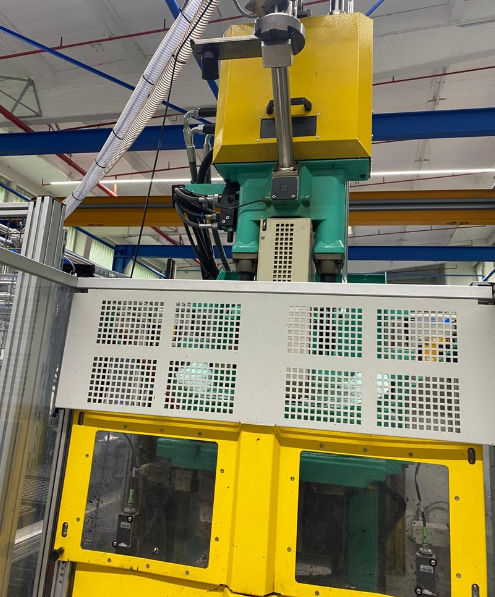

Arburg Allrounder 375 V 500-170 50 T
Ref :
2741597-6-GO
Condition :
Used
Manufacturer :
Arburg
Model :
Allrounder 375 V 500-170
Capacity :
50 T
Year(s) :
2013
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Steering: Selogica-direct
Year of construction: 2013
Operating hours: 41404 hours
Technical data closing side
Closing force: 500 kN
Minimum installation height: 200 mm
Maximum installation height: 550 mm
Maximum plate spacing: 302 mm
Opening path: 225 mm
Size round table D: 900 mm
Ejector force: 70 kN
Centering movable plate D: 125 mm
Tool weight: 230 kg
Technical data spray side
Screw diameter: 25 mm
Displacement: 59 cc
Injection pressure: 2500 bear
Screw length: 24 l/d
Screw speed: 35 min
Worm torque: 210 N
Number of heating zones: 5
Dimensions & Weight
Machine dimensions LxWxH: 2.524 m x 1.48 m x 3.53 m
Total weight: 3111 KG
equipment
Screen text German
turntable
Leveling elements
