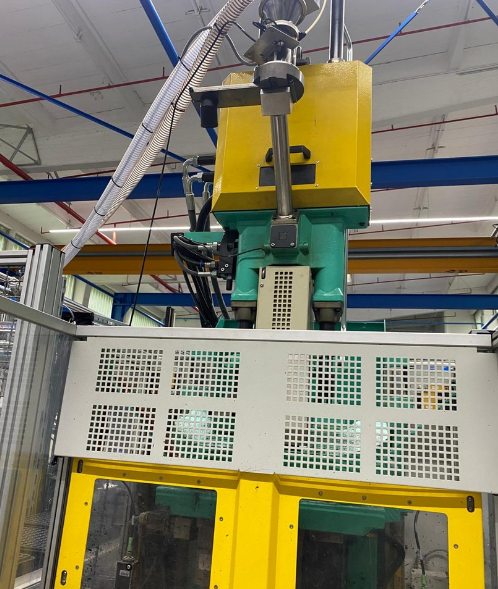

Arburg Allrounder 375 V 500-170 50 T

Steering: Selogica direct
Year of construction: 2013
Operating hours: 36163 h

Technical data Closing side
Closing force: 500 kN
Minimum installation height: 200 mm
Maximum installation height: 550 mm
Maximum plate spacing: 302 mm
Opening method: 225 mm
Size of round table D: 900 mm
Ejector force: 70 kN
Centering movable plate D: 125 mm
Tool weight: 230 kg

Technical data spray side
Screw diameter: 25 mm
Engine displacement: 59 cc
Injection pressure: 2500 bear
Snail length: 24 l/d
worm speed: 35 min
Worm torque: 210 N
Number of heating zones: 5

Dimensions & Weight
Machine dimensions (L x W x H): 3 m x 1.6 m x 3.48 m
Total weight: 3540 kg

equipment
Bildschirmtext German
turntable
Hydraulic core pull 1x
Machine with water battery
Machine without material hopper
Leveling elements
EUROMAP 67 interface handling
EUROMAP 73 interface
Interface for ejector plate locking
