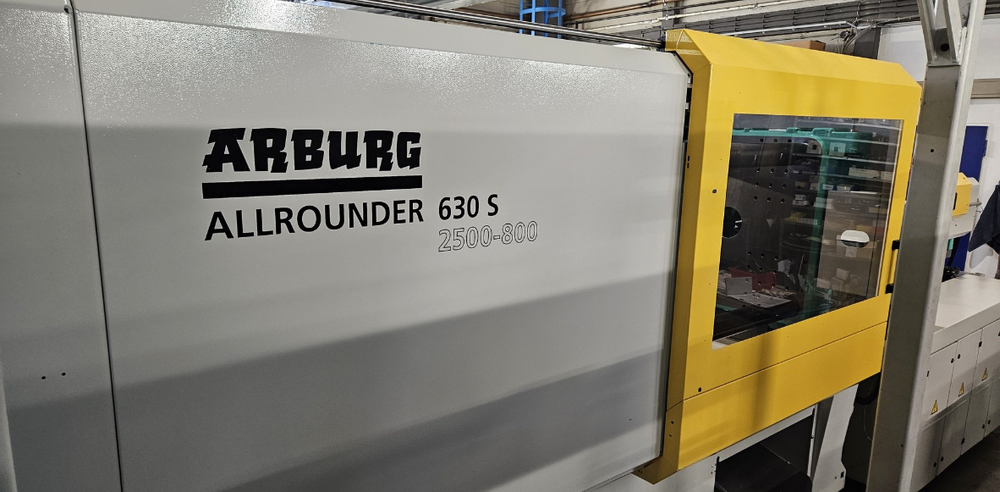

Arburg Allrounder 630 S 2500-800 250 T

Control unit: Selogica
Year of manufacture: 2012
Operating hours: 37830 h

Technical Data - Closing Side
Closing Force: 2500 kN
Timber Dimensions h x v: 630 x 630 mm
Plate Size h x v: 900 x 900 mm
Minimum Installation Height: 300 mm
Maximum Installation Height: 700 mm
Maximum Plate Spacing: 1300 mm
Opening Stroke: 600 mm
Ejector Stroke: 225 mm
Ejector Force: 90 kN
Moving Plate Centering Diameter: 160 mm
Fixed Plate Centering Diameter: 160 mm

Injection Side Technical Data
Screw Diameter: 50 mm
Stroke Volume: 392 cc
Injection Pressure: 2000 bar
Screw Length: 20 l/d
Screw Stroke: 200 mm
Screw Speed: 60 rpm
Screw Torque: 1000 N
Injection Flow into Free: 300 g/s PS
Number of heating zones: 8
Nozzle travel: 400 mm

Dimensions & Weight
Machine dimensions L x W x H: 6.4 m x 1.95 m x 2.21 m
Total weight: 12,140 kg

Equipment
On-screen text in German
On-screen text in English
16 A CEE socket
Compact Flash interface for data storage
1x hydraulic core pull
2x air valves
Machine with water battery
Machine without material hopper
Leveling elements
EUROMAP 67 handling interface
OPC interface
10 A Schuko socket
Selection unit
12x tool heaters
