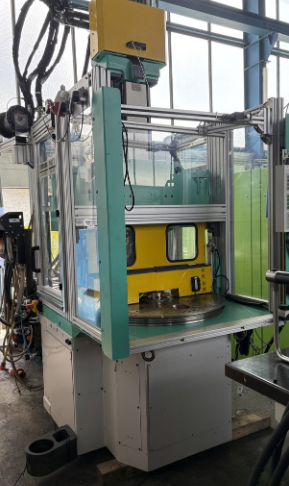

Arburg Allrounder 900 T 800-150 80 T

Operating hours: 72154 hours

Technical data closing side
Closing force: 800 kN
Holmass hxv: 900 x 900 mm
Minimum installation height: 250 mm
Maximum plate spacing: 550 mm
Opening path: 300 mm
Size round table D: 900 mm
Ejector stroke: 150 mm
Ejector force: 46 kN
Centering movable plate D: 90 mm
Centering fixed plate D: 90 mm

Technical data spray side
Screw diameter: 25 mm
Displacement: 54 cc
Injection pressure: 2500 bear
Screw length: 24 l/d
Worm torque: 210 N
Plasticizing stream: 49 g/s hp
Injection flow to the outside: 80 g/s hp

Dimensions & Weight
Machine dimensions LxWxH: 3.8 m x 1.85 m x 2.15 m
Total weight: 5000 KG

equipment
Screen text German
Air valve 1x
Machine with rotary table
Machine with water battery
Leveling elements
BDE interface
