ARFF

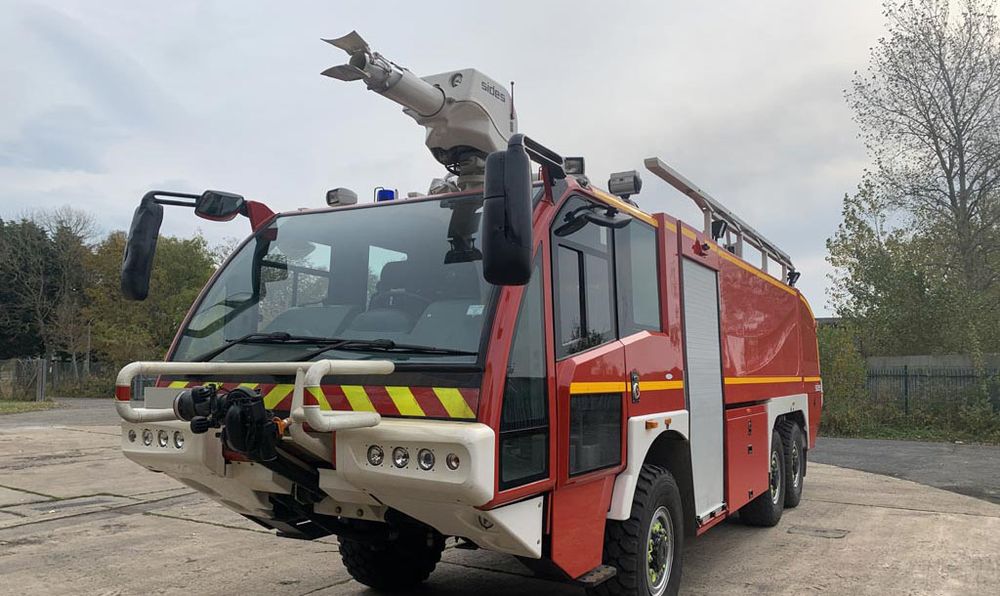

Sides VMA S3X (SENTINAL)
Leading Particulars:
Auto Gearbox
Water tank capacity 10,000ltrs
Foam tank capacity 1,000ltrs
Pump Output 6,000 litres at 12 bar
Foam expansion ration 7 to 10 depending on foam concentrate

Roof Monitor:
Operating pressure 13 Bar
Output 1/1 4,500 l/min
Output 1/2 2,250 l/min
Range 70m

BumperMonitor:
Operating pressure 13 Bar
Output 1/1 1,140 l/min
Range 55m
Foam expansion ration 3 to 4 depending on foam concentrate

Foam Hose Reel Hand Line:
Default operating pressure 8 Bar
Flow rate 360 l/min
Range 25m depending on flow rate and adjustment of jet
Length 30m
Diameter 35mm

Foam Side Line:
Default operating pressure 8 Bar
Flow rate 360 l/min
Range 25m depending on flow rate and adjustment of jet
Length 30m
Diameter 35mm

Vehicle Self Protection:
Total flow rate 300 l/min
Radius range 3.50m
In excellent condition
