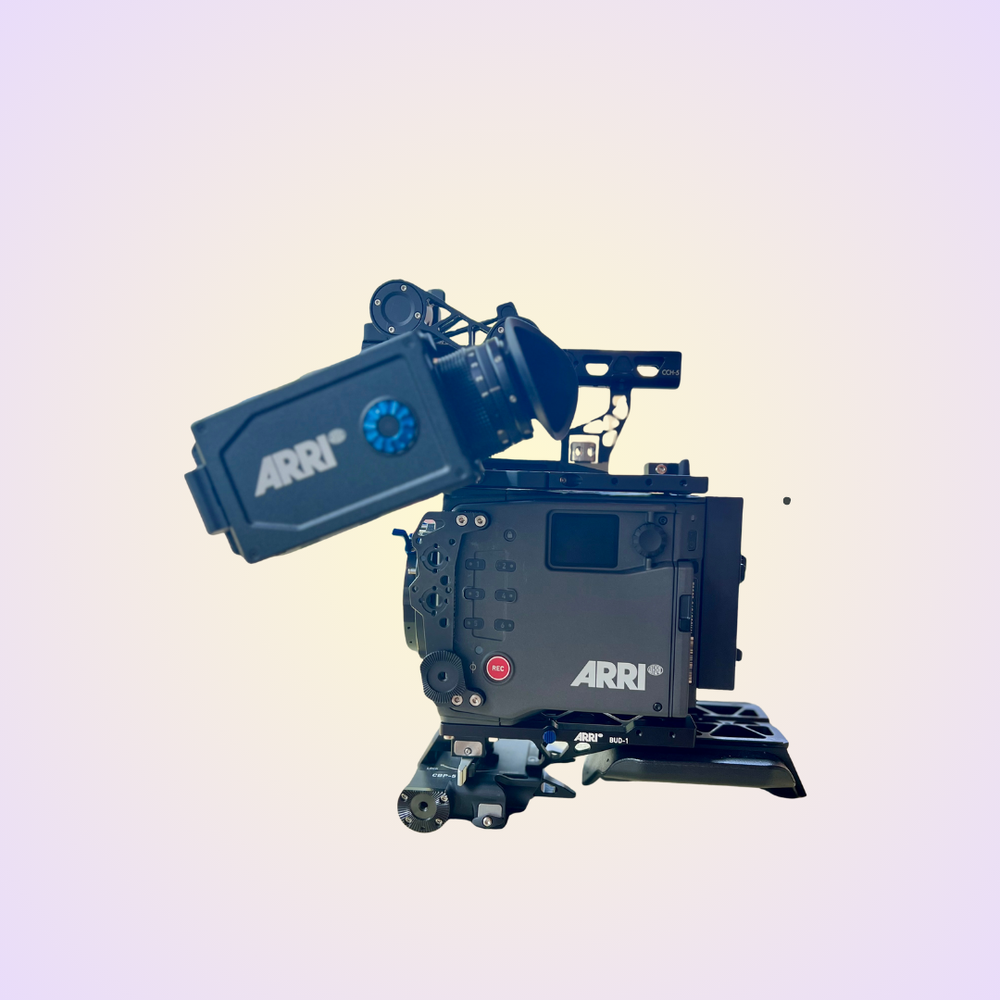

ARRI ALEXA 35

ARRI ALEXA 35 19mm Production Studio Kit with ARRI Codex HS Media Bundle

Key Specifications:
Sensor & Image Quality
Sensor Type: ALEV 4 CMOS Sensor
Resolution: 4.6K (4608 x 3164)
Dynamic Range: 17+ stops
Sensor Size: Super 35 (27.99 x 19.22mm)
Base Sensitivity: EI 800 (with dual-gain architecture)
Color Science: ARRI’s new REVEAL Color Science for natural skin tones and enhanced color rendition

Recording Formats
ARRI RAW: Up to 4.6K
ProRes Options: ProRes 4444 XQ, 4444, 422 HQ, 422, 422 LT

Frame Rates: 4.6K up to 120 fps
3.3K up to 150 fps
2.7K up to 200 fps

Recording Media: Codex Compact Drives (1TB & 2TB)

Lens Mount & Compatibility
Lens Mount: Native LPL Mount (PL mount adapter available)

Compatible with:
ARRI Signature Primes & Zooms
Super 35 & Full Frame Lenses (with proper adapters)
Vintage and third-party lenses via mount adapters

Connectivity & Workflow
Video Outputs: 2x 12G-SDI outputs (HDR-capable)
Audio Inputs: 2x XLR inputs (48V phantom power)
Timecode & Sync: Genlock, TC in/out
Control Interfaces: Ethernet, Wi-Fi, RS232, and LBUS

Power & Build
Power Consumption: ~90W (varies with accessories)
Battery Options: 24V DC input, compatible with Gold Mount / V-Mount batteries
Weight: Approx. 6.4 lbs (2.9 kg) (body only)
Durability: Robust, weather-sealed magnesium alloy body

INCLUDES:
ALEXA 35 Camera Body
ALEXA 35 Cine License
ARRI LPL Mount (LBUS)
ARRI PL-to-LPL Adapter
Balance Utility Dovetail BUD-1
B-Mount Battery Adapter
Multi Viewfinder MVF-2
2x- Cable VF Right Angle (0.5m/1.5ft)
Camera Power Cable Straight 2m/6.6in KC-50
Power Distribution Module PDM-1
Production Support Set - Top
Production Support Set - Side
Production Support Set - Bottom (19mm)

ARRI Codex HS Media Bundle
Comes
3-ARRI Codex Compact Drive 2TB Ea.
Protective Case

ARRI Codex Compact Drive Dock (Thunderbolt 3)
Thunderbolt 3 Cable
Power Supply
