AS221

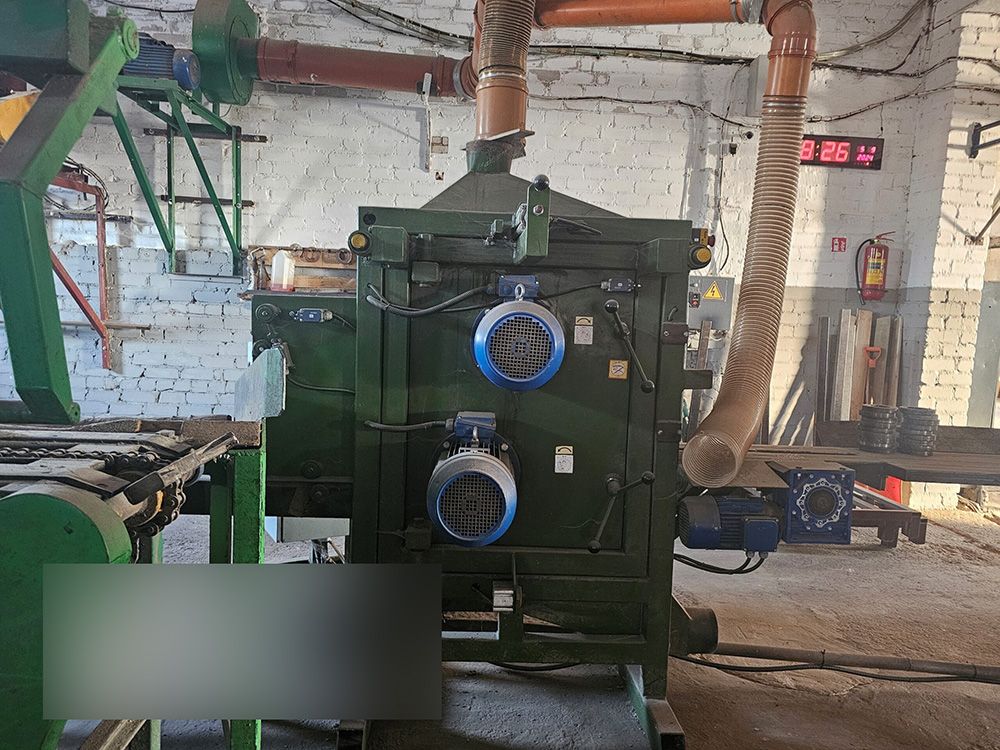

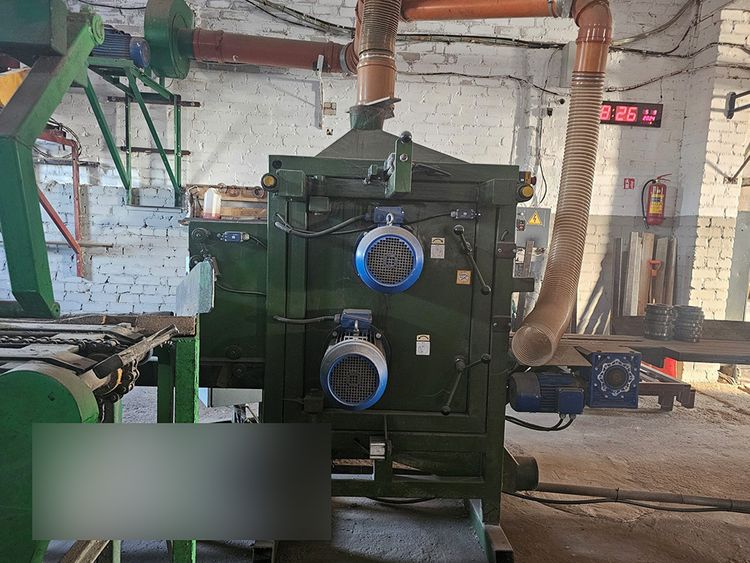

Log longitudinal cutting machine
Logs are cut via 4 circular saws, 2 top saws and 2 bottom saws.
Log is put on the table and is transported, while 4 circular saws cut of two sides.

Technical characteristics:
Diameter of log for processing: 120 – 300 mm
Length of log for processing: 1200 – 1900 mm
Width of cut product: 70 – 165 mm
Diameter of circular saw: 450 mm
Bore of circular saw: 70 mm
Rotation of circular saw: 2930 rpm
Feeding speed: 6 – 18 m/min

Dimensions of machine:
Length: 6440 mm
Width: 1270 mm
Height: 1940 mm
Electrical current: 400/50/3 V/Hz/Ph
Number of electrical motors: 7 pc
Capacity bottom motors: 2×11 kW
Capacity top motors: 2×7,5 kW
Capacity feeding motor: 1,5 kW
Speed cutting motors: 2900 rpm

Machine and main aggregates:
Pos. Controls and their function
1 Feeding adjustment handle
2 Screw for closure
3 Machine switch of (emergency) knobs
4 Saw on knob
5 Feeding stop knob
6 Feeding “forward” switch
7 Feeding “backward” switch
8 Main switch
9 Grounding screw
10 Chain tensioning screw
