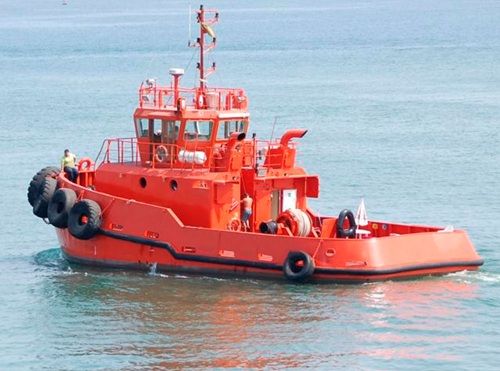

ASD Tug Bollard pull 25 Tn

Length overall 20 m
Breadth 8.2 m
Depth 3.9 m
Net tonnage 210 tons
Gross tonnage 131 tons
Total power output 1100 BHP
Main engines 2x Caterpillar
Main propulsion system ASD, Azimuthal, Schottel SRP 550 FP
Maximum speed 10 knots
Cruising speed 8 knots
VHF x2 Sailor RT 2048
VHF x1 Radio Ocean 4500
Radar Furuno (No SOLAS)
Echo sounder Furuno LS6000 (No SOLAS)
EPIRB McMurdo SmartFind G5
GPS Furuno GP-31
Anchors x2
Towing hook Ferri – 28 Tn
Internal fire fighting equipment
Foam 45 l
ABC x6
CO2 x2
Forward towing lines approx. 100 m Strongline 68 mm (90T)
Aft towing lines approx. 100 m cable 32 mm
Aft towing lines approx. 200 m estacha/line 72 mm (84Tn)
Gauges x2 20 m 36 mm steel cable 36 mm
Gauges 15 m, C.R. 70T
Shackles 25 Tn x1
Shackles SWL 3250 Kg (16x20 mm) x12
Eurofloat Premium 68 mm, 220 m, MBL 900 Kn
Acuisteel 72 mm, 200 m, MBL 842 Kn
Acuisteel 72 mm, 70 m, MBL 842 Kn
Acuisteel 40 mm, 100 m, MBL 274 Kn
Polysteel 72 mm, 200 m, MBL 820 Kn
Nikasteel polyester 220 m, MBL 760 Kn
Steelester yellow + blue 80 mm, 200 m, RBL 121T
Estacha/line Polyester 40% Polypropylene 60% 64 mm, 220 m, MBL 760 Kn
